This hand dryer is a high-performance sanitation solution engineered for rapid moisture removal and superior user efficiency in high-traffic environments. Constructed from durable ABS material with a Metallic Silver finish, the unit utilizes a powerful 18,000 rpm ICP brushless DC motor to achieve air speeds of 120 m/s. This advanced pneumatic engineering ensures a drying time of less than 10 seconds, significantly reducing energy consumption and improving throughput in commercial or public facilities.
The device features a sophisticated infrared automatic sensor system that is self-adjusting to ensure reliable touch-free operation and optimal hygiene. An integrated LCD provides clear instructions and a countdown timer to guide users through the drying process, while a 30-second auto shut-off mechanism prevents unnecessary operation. The unit is designed for surface mounting and includes a 3-pin plug and lead for straightforward installation into standard 220V-240V AC power sources.
Safety and compliance are central to the design, with the unit meeting rigorous international standards including IEC/EN60335-1 and IEC/EN60335-2-23, alongside full EMC directive compliance. It incorporates an auto-resetting thermal protection thermostat that activates at 105 degrees Celsius to prevent overheating during continuous use. The IP22 rating and drip-proof features further enhance the structural integrity and operational safety of the device in moisture-prone environments.
Measuring 650mm in height and weighing 11kg, this robust appliance operates at a controlled noise level of 70 dBA at one meter, balancing high-velocity performance with acoustic comfort. The product is backed by a comprehensive 3-year warranty, covering parts for the full duration and labor for the first year, reflecting its status as a reliable long-term investment. This hand dryer represents a fusion of modern aesthetics and industrial-grade functionality for demanding architectural applications.
PRODUCT TYPE: Hand Dryer
WARRANTY: 3 years (3 years parts, 1 year labour)
COMPLIANCE: IEC/EN60335-1; IEC/EN60335-2-23; Compliant to EMC directive according to EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3
COLOUR: Metallic Silver
MATERIAL: ABS
IP RATING: IP22
VOLTAGE: 220V-240V AC (50Hz)
WATTAGE: 850W

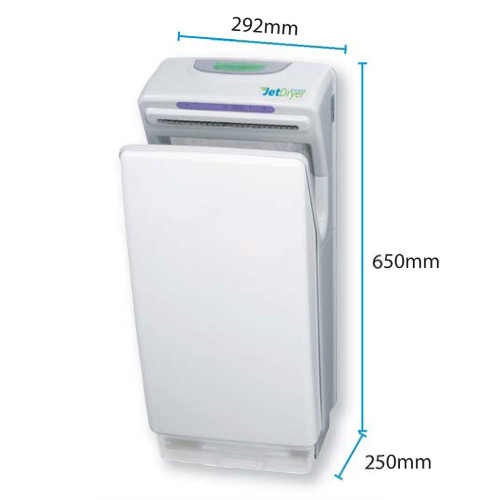

DIMENSIONS: 650mm (height) x 292mm (width) x 250mm (depth)
WEIGHT: 11kg
MOUNTING: Surface mounted
OPERATION: LCD instruction and countdown; Infrared automatic, self adjusting; 30 seconds auto shut off
NOISE: 70 dBA @ 1 mtr
AIR SPEED: 120 m/s
MOTOR: 18,000 rpm; ICP Brushless DC motor
DRYING TIME: Less than 10 seconds
THERMAL PROTECTION: Auto resetting thermostat turns unit off, 240V at 105°C
INSTALLATION: 3-pin plug and lead
FEATURES: Drip proof
ISOLATION: Class 1
INSTRUCTIONS: Includes manual and mounting guide
