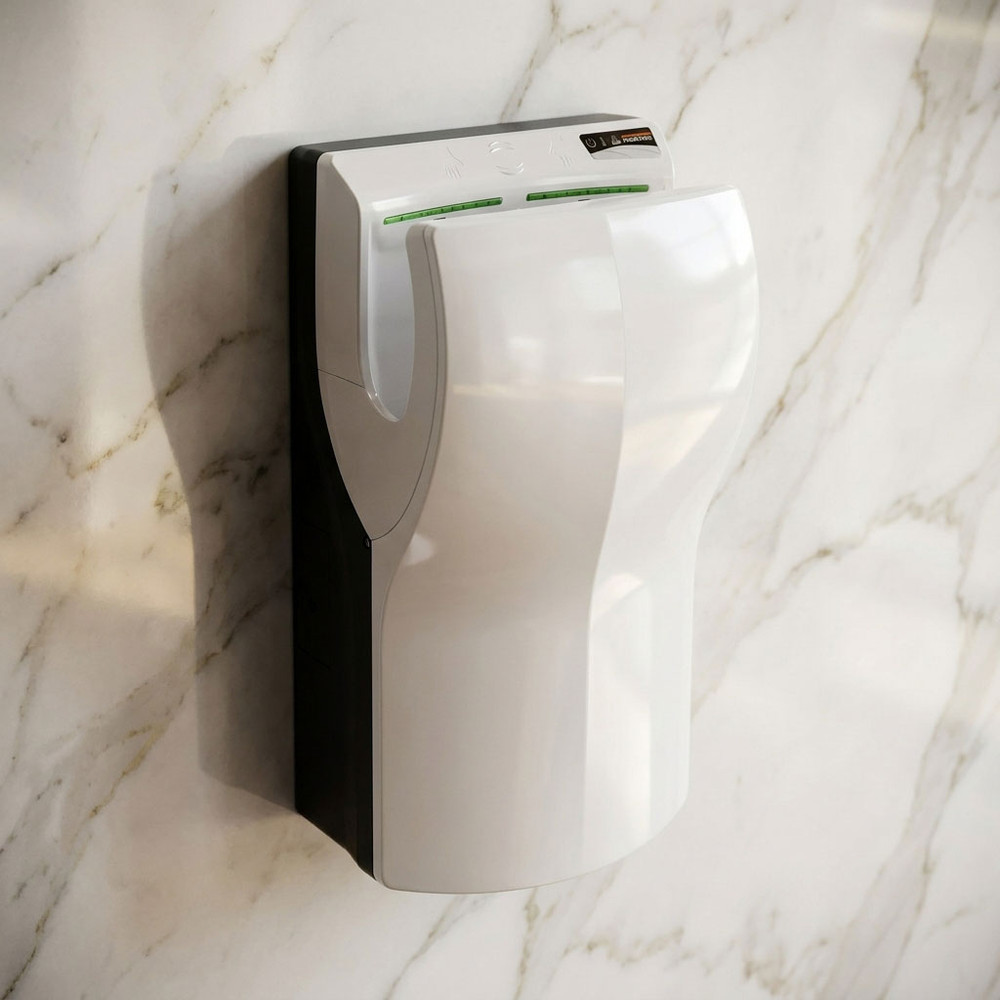

This hand dryer is a high-performance, surface-mounted solution engineered for high-traffic facilities requiring rapid and hygienic hand drying. Constructed with a 3mm thick high-impact ABS cover and a robust PA6V0 plastic base plate, the unit features a hands-in design that utilizes two pairs of infrared sensors for automatic activation. The system is powered by a high-speed class F universal brush motor, offering adjustable power settings between 420W and 1500W to optimize energy efficiency and performance.
Technical performance is characterized by an adjustable airflow ranging from 94 to 165 cubic meters per hour and air speeds between 234 and 410 kilometers per hour, facilitating a drying time of approximately 10 to 15 seconds. The integration of a 400W heating element with an independent ON/OFF switch allows for precise control over the 40 degree Celsius output air temperature. Operating at a noise level between 62 and 72 dBA, the device maintains a balance between high-velocity output and acoustic comfort in commercial environments.
Advanced hygiene and maintenance features include Biocote antimicrobial technology and a comprehensive filtration system comprising HEPA media and activated carbon to eliminate pollen, dust mites, and tobacco smoke. The unit incorporates a 0.5-liter removable water tank with an optical and acoustic full tank warning system, alongside an auto check-in lighting panel that monitors machine status.
Compliance with international standards is verified through certifications including HACCP, CE, GS, VDE, and RoHS, ensuring the highest levels of safety and reliability. The electrical configuration supports 220V to 240V at 50/60Hz with an IPX4 rating for protection against water splashes. Measuring 665mm in height, 320mm in width, and 228mm in depth, this Class I appliance provides a sophisticated, environmentally friendly alternative to paper towels, backed by a seven-year warranty for professional peace of mind.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Suitable for high traffic facilities
MADE IN: Europe
WARRANTY: 7 years (3 years labour, 7 years parts)
COMPLIANCE: UNE EN ISO 11201:2010 V2; EN 60335-1; EN 60335-2-23; EN 61000-3-2; EN 61000-3-3
COLOUR: White (finish)
MATERIAL: High impact ABS (cover); plastic PA6V0 (base plate)
IP RATING: IPX4 (resistant against splashing from any direction)
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 420W-1500W (adjustable)

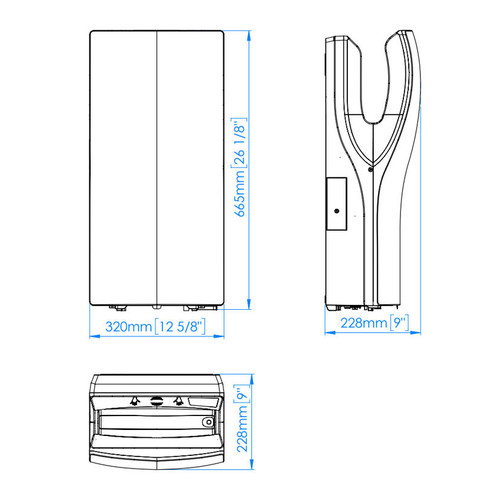

DIMENSIONS: 665mm (height) x 320mm (width) x 228mm (depth)
WEIGHT: 8.3kg
CLASS: I
OPERATION: Automatic infrared sensor activation; hands-in design; starts when hands enter detection area; continuous operation while hands remain in detection range; move hands vertically for complete drying; stops 2 seconds after hands are removed; auto check-in lighting panel (green - machine running, blue - full tank, red - check engine); optical and acoustic full tank warning; 30-second safety timer
RPM: 19,000-30,000 (adjustable)
MOTOR: 420W-1100W (adjustable); high-speed class F universal brush motor
NOISE: 62-72 dBA
AIR TEMPERATURE: 40°C (air temperature at 10cm distance/21°C)

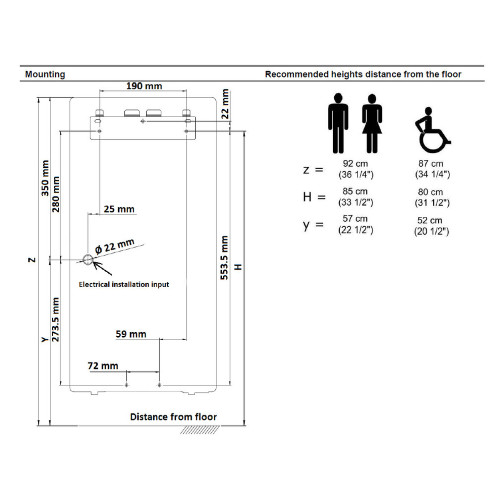

INSTALLATION: Electrical installation input; can be connected to the main waste pipe of the bathroom via optional waste pipe connection kit
FEATURES: Hands-free hand dryer; Biocote antimicrobial and antibacterial protection technology; Removable inner water tank (0.5 L volume); energy efficient; environmentally friendly
CONSUMPTION: 3.2A-6.4A
MOTION SENSOR: Yes (two pairs of IR sensors on both upper sides)
FILTER: HEPA media filter (filters pollen, dust mites, tobacco smoke); activated carbon filtering medium
AIR SPEED: 234-410km/h
AIRFLOW: 94-165m³/h (1,570-2,750L/min)
DRYING TIME: 10-15 seconds
HEATING ELEMENT: 400W with ON/OFF switch
COVER THICKNESS: 3mm
CERTIFICATIONS: HACCP; CE; GS; VDE; EMC; EAC; RoHS; CB Scheme; UL
