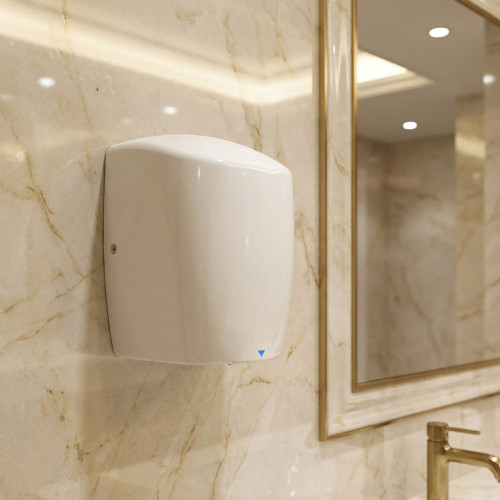

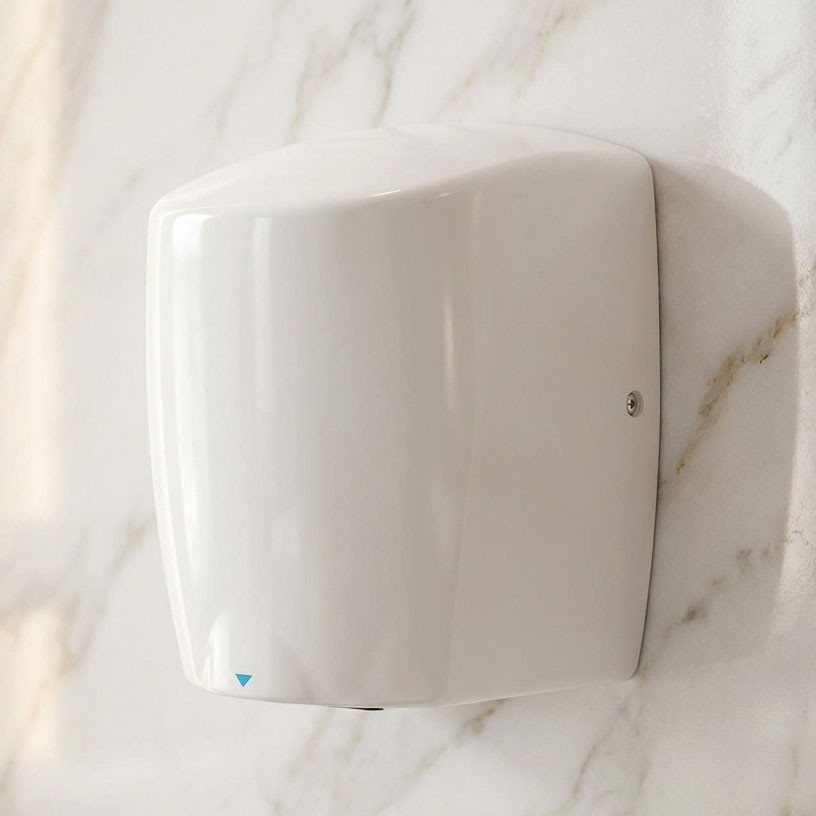

This hand dryer is a high-performance, energy-efficient solution designed for environments where space is at a premium. Constructed from durable die-cast aluminium with a white finish, this wall-mounted unit provides a robust and vandalism-resistant drying solution for high-traffic areas. The compact dimensions of 205mm in width and 287mm in height ensure a minimal footprint while maintaining superior functionality and aesthetic integration.
Engineered for rapid moisture removal, the device features a 640W adjustable brush-type motor and a 240W thermal protected heater element, delivering a combined wattage of 900W. This configuration achieves an impressive air speed of 64 m/s, facilitating a drying time of approximately 10 seconds. The system operates on a standard 220V-240V AC supply and includes a 3-pin plug and lead for straightforward installation in various commercial settings.
Operational efficiency is enhanced through an infrared automatic, self-adjusting sensor system that includes a 30-second auto shut-off mechanism to conserve energy. Blue LED lights illuminate the hands during the drying cycle, providing a modern user interface and clear operational feedback. With a noise level of 76dBA at one meter, the unit balances high-speed performance with acoustic management, making it a cost-effective alternative that can save up to 85% of annual costs compared to conventional dryers.
This product is Class I rated and features an IP22 ingress protection rating, ensuring safety and reliability in restroom environments. It complies with extensive international standards including EC/EN60335-1, EMC directives, and AS1428 for disability compliance when installed to the required standard. Backed by a 3-year warranty covering parts and labour, this hand dryer represents a hygienic, greener, and brighter choice for modern facility management.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Environments where space is at a premium
WARRANTY: 3 years (3 years parts, 1 year labour)
COMPLIANCE: EC/EN60335-1; IEC/EN60335-2-23; EMC directive; EN55014-1; EN55014-2; EN61000-3-2; EN61000-3-3; AS1428 (when installed to standard)
COLOUR: White
MATERIAL: Die-cast aluminium
IP RATING: IPX22
VOLTAGE: 220V-240V AC (50Hz)
WATTAGE: 900W
DIMENSIONS: 205mm (width) x 287mm (height) x 180mm (depth)
WEIGHT: 4.5kg
MOUNTING: Wall mounted
CLASS: I
OPERATION: Infrared automatic, self adjusting; 30 seconds auto shut off; Blue LED lights illuminate the hands when drying
NOISE: 76dBA
INSTALLATION: 3-pin plug and lead
FEATURES: Energy efficient; compact and cost effective; fast, hygienic way to dry your hands; save up to 85% of annual costs compared to conventional dryers; vandalism-resistant; compact size; high-speed; greener and brighter
AIR SPEED: 64 m/s
MOTOR TYPE: 640W adjustable brush type
HEATER ELEMENT: 240W thermal protected
DRYING TIME: 10 seconds
DECIBEL RATING: 76 dBA @ 1 mtr
COMPLIANT: Suitable for disabled-accessible washrooms when installed in accordance with AS 1428 requirements
INSTRUCTIONS: Includes manual and mounting guide
