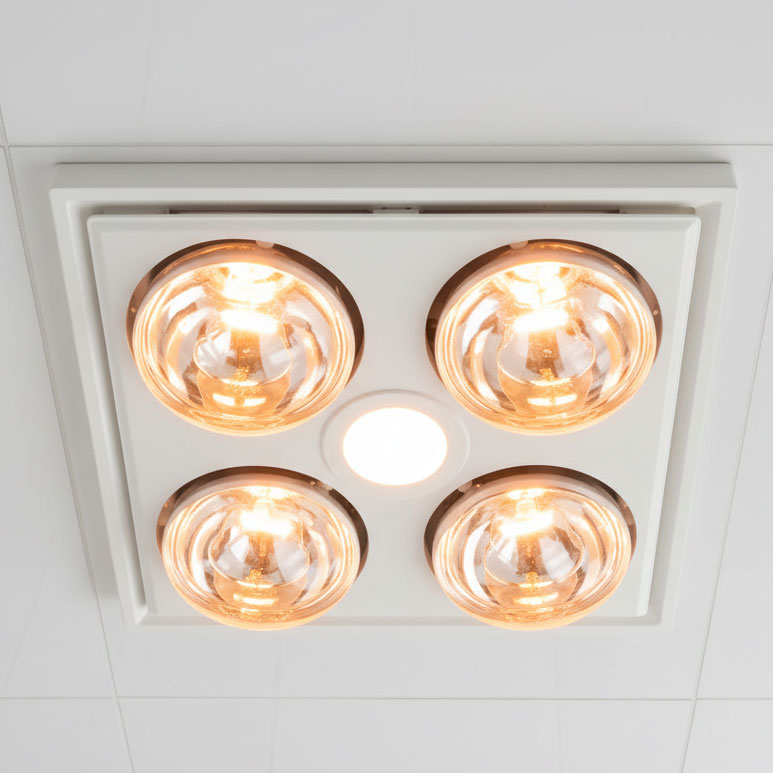

This bathroom heater fan with light is designed to deliver high-performance heating, ventilation and illumination for residential bathroom environments, integrating multiple functions into a single ceiling-mounted unit. Finished in white and constructed from durable plastic, the fitting measures 375mm x 375mm x 175mm and is engineered for recessed installation using a 290mm x 290mm cut-out, allowing it to sit flush within the ceiling for a clean and unobtrusive finish.
Ventilation performance is driven by a 30W ball bearing motor, delivering air extraction of up to 270m³/hr to assist in the rapid removal of moisture, steam and airborne contaminants. Air is exhausted through a 100mm diameter duct outlet, supporting consistent airflow performance suitable for larger or higher-use bathroom spaces. The unit carries an IPX2 rating, providing appropriate protection for bathroom installations when installed in accordance with electrical regulations.
Illumination is provided by a 7W fixed LED light source, producing 750lm of output at a colour temperature of 3000K to deliver warm white light suitable for everyday bathroom use. Heating performance is supplied by four 275W infrared heat lamps, delivering strong radiant warmth to improve thermal comfort during colder conditions. These IR heat lamps utilise an E27 base, while independent control of the heat, fan and light functions allows each element to be operated as required without unnecessary energy consumption.
Designed with safety and long-term reliability in mind, the unit incorporates a 75°C thermal cut-out to protect against overheating during operation. Supplied accessories include a wall controller with three switches for separate control of heating, lighting and ventilation, along with 1.5m of flexible ducting, a duct grille, mounting hardware and a cut-out template to support accurate installation. This bathroom heater fan must be installed by a licensed electrician and is backed by a 3 year in-home warranty, providing a dependable and integrated solution for everyday bathroom comfort.
COLOUR: White
MATERIAL: Plastic
DIMENSIONS: 375mm x 375mm x 175mm
CUTOUT: 290mm x 290mm
DUCT OUTLET: 100mm (diameter)
AIRFLOW: 270m³/hr
MOTOR: Ball bearing motor
MOTOR WATTAGE: 30W
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 7W
COLOUR TEMP: 3000K (warm white)
LUMENS: 750lm
HEATER: 4 x 275W
HEAT LAMP TYPE: IR heat lamps
HEAT LAMP BASE: E27
WEIGHT: 4.3kg
IP RATING: IPX2
INSTALLATION: Must be installed by licensed electrician
INCLUDES: Wall controller with 3 switches for separate heat, light and fan control; 1.5m flexible ducting (100mm); duct grille; mounting kit; cut out template
FEATURES: 75°C thermal cut-out safety protection
WARRANTY: 3 years (In-home)
