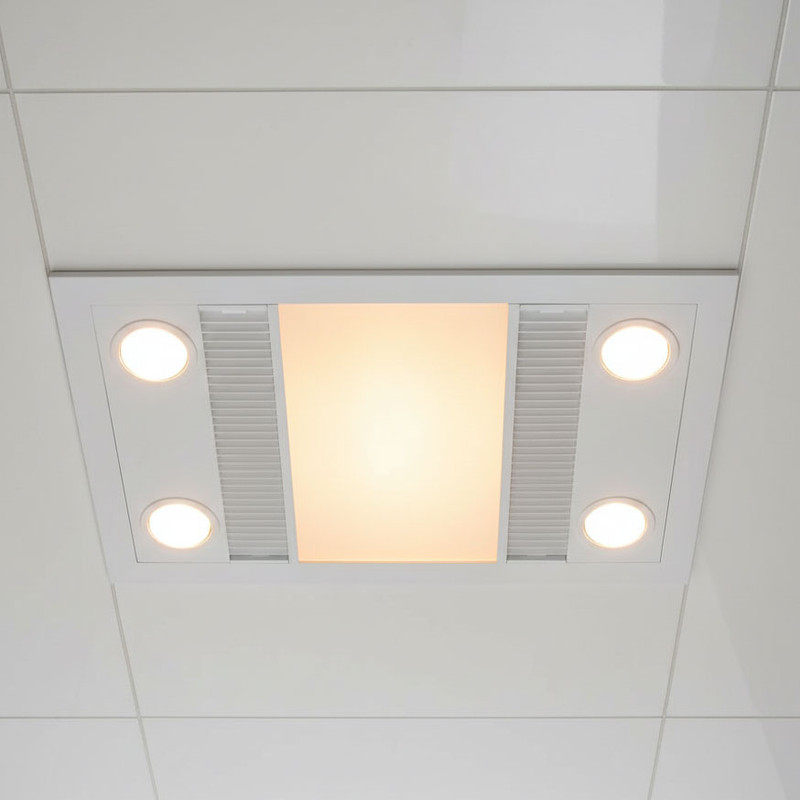

This bathroom heater fan is engineered as a compact and efficient 3-in-1 climate control solution, integrating space heating, mechanical ventilation and LED illumination within a streamlined ceiling-mounted unit. Finished in matt white with a robust steel housing and aluminium fascia, the fitting features a sleek low-profile design measuring 500mm in length, allowing it to integrate discreetly into modern bathroom interiors. Rated to IPX2 and operating on 220-240V AC at 50-60Hz, it is designed for safe installation in bathroom environments when fitted by a licensed electrician.
Thermal performance is delivered by a powerful 1000W R7s heat tube measuring 238mm, providing rapid and effective radiant heating to improve occupant comfort during colder conditions. The heater is supported by built-in thermal overload protection, ensuring stable operation and safeguarding the unit against excessive temperatures. An integrated back draft stopper further enhances system efficiency by preventing unwanted airflow reversal when the exhaust function is not in use.

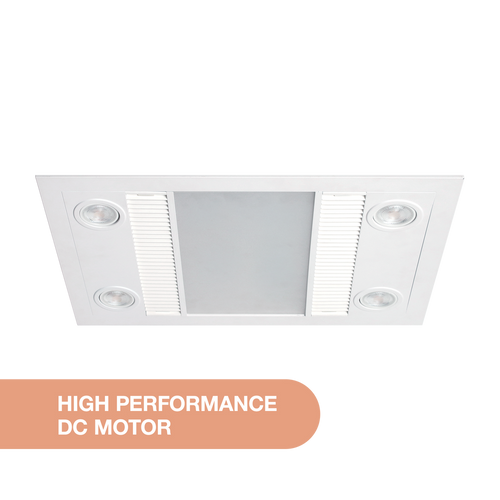

Ventilation is driven by a high efficiency ball bearing DC motor, delivering an airflow rate of up to 600m³/hr while maintaining a low operational noise level of ≤40dB. With an exhaust fan power consumption of just 25W, the system achieves effective moisture and odour removal with reduced energy demand. Compatibility with 150mm ducting and the inclusion of a 3m duct and external grille support reliable air extraction performance in residential bathroom applications.
Illumination is provided by four included 6W GU10 LED lamps, producing a combined luminous output of 2400lm for clear and uniform light distribution. The Tri-CCT capability allows selection between 3000K warm white, 4000K cool white and 5000K daylight white, enabling the lighting environment to be tailored to user preference or functional requirements. Designed for recessed installation with a 455mm x 305mm cutout and a minimum ceiling depth of 210mm, this Class I bathroom heater fan is supplied with a 3-gang wall switch controller and backed by a 2-year in-home warranty, delivering a reliable and well-engineered solution for contemporary bathroom comfort.
COLOUR: Matt White
MATERIAL: Steel housing, aluminium fascia
IP RATING: IPX2
VOLTAGE: 220-240V AC 50-60Hz
DIMENSIONS: 500mm (length) x 350mm (width) x 205mm (depth)
CUTOUT: 455mm x 305mm
EXHAUST FAN WATTAGE: 25W
HEATING WATTAGE: 1000W (R7s heat tube, 238mm)
GLOBE: GU10
NUMBER OF GLOBES: 4
GLOBE INCLUDED: Yes
GLOBE WATTAGE: 4 x 6W
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 2400lm
AIRFLOW: 600m³/hr
NOISE: ≤40dB

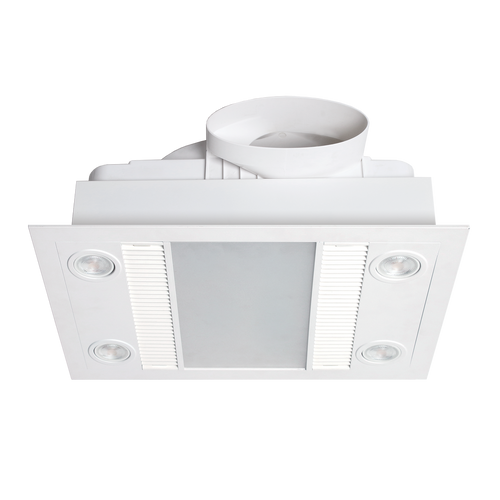

DUCTING SIZE: 150mm
MINIMUM CEILING DEPTH: 210mm
MOTOR TYPE: High efficiency ball bearing DC motor
CAPABILITIES: Built-in thermal overload protection; back draft stopper included
FEATURES: Sleek low-profile design; slimline fitting; cut-out template included
INCLUDES: 3m duct, 2 x ducting clips, 1 x external grille, 1 x heat tube, 4 x LED lamps, 1 x 3-gang wall switch controller
ELECTRICAL CLASS: Class I
INSTALLATION: By licensed electrician only
WARRANTY: 2 years (In-home warranty)
