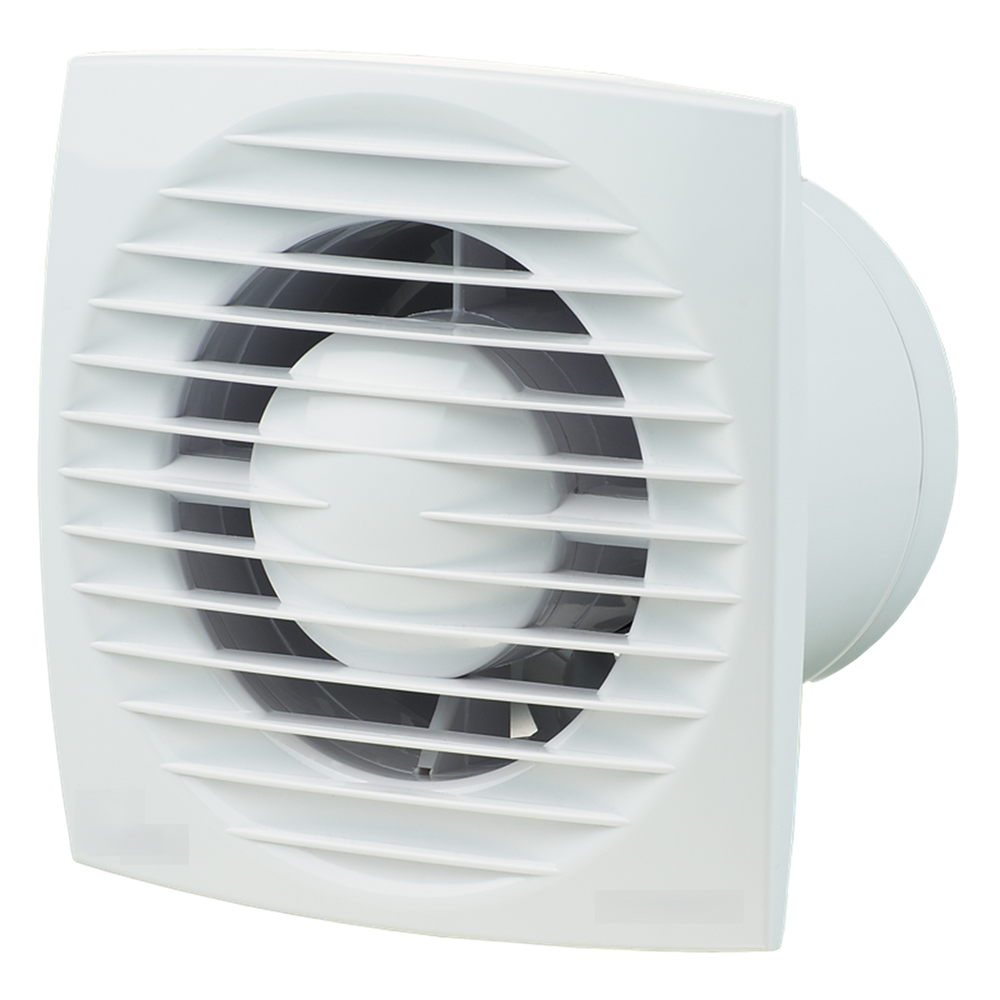

This exhaust fan is engineered for high-efficiency residential ventilation, providing a reliable solution for maintaining air quality in bathrooms and kitchens. Constructed with a durable plastic casing and a specialized low-noise impeller, the unit ensures consistent performance while operating at a sound pressure level of 39dBA at 3 meters. The integration of a ball bearing motor facilitates continuous operation and extends the mechanical lifespan of the device, making it suitable for demanding domestic environments.
Technical specifications include a power consumption of 24W and a voltage range of 220V-240V at 50Hz, delivering an airflow capacity of 305m³/h or 85 l/s. The unit features an IP34 rating, making it suitable for installation in Bathroom Zone 2, and is designed for both wall and ceiling mounting configurations. With a compact front projection of 19mm and a 150mm exhaust duct diameter, the fan integrates seamlessly into standard ventilation systems while maintaining a Specific Fan Power of 0.28 W/l/s.
Safety and compliance are prioritized through Class II double insulation and certifications including CE and GS, ensuring the product meets rigorous international standards. The inclusion of a backdraft damper prevents air leakage and heat loss when the fan is not in use, enhancing the overall energy efficiency of the building's ventilation strategy. Designed for manual control, the system operates effectively within an ambient temperature range of 1°C to 40°C, providing versatile application across various climates.
Maintenance is simplified by the modular design of the plastic components, allowing for easy cleaning and long-term reliability. The product is backed by a 5-year warranty, reflecting its robust construction and high-quality internal components. Installation must be performed by a qualified electrician to ensure adherence to IEC 60364-7-701:2019 standards, guaranteeing a secure and professional setup for optimal residential air extraction.
PRODUCT TYPE: Exhaust Fan
APPLICATIONS: Residential ventilation
WARRANTY: 5 years
COLOUR: White
MATERIAL: Plastic (casing); plastic (impeller)
IP RATING: IP34
VOLTAGE: 220V-240V (50Hz)
WATTAGE: 24W

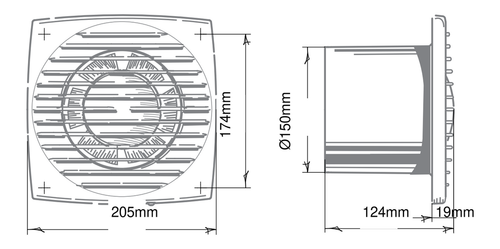

DIMENSIONS: 205mm (width) x 124mm (depth) x 174mm (height)
FRONT PROJECTION: 19mm
WEIGHT: 0.9kg
MOUNTING: Wall and ceiling mounting
AIRFLOW: 305m³/h (85 l/s)
RPM: 2400
MOTOR: Ball bearing motor
NOISE: 39dBA at 3m
EXHAUST: 150mm duct
CURRENT: 0.13A
SFP: 0.28 W/l/s
AMBIENT TEMP: 1°C to 40°C
CLASS: II (double insulated)
CONTROL: Manual control
BATHROOM ZONE: Suitable for Zone 2 in accordance with IEC 60364-7-701:2019
INSTALLATION: Must be installed and connected by a qualified electrician
ACCESSORIES: Duct system (sold separately); flexible air ducts (sold separately); grilles and hoods (sold separately); speed controllers (sold separately); clamps (sold separately)
CERTIFICATION: CE; GS
FEATURES: Low noise impeller; easy maintenance; continuous operation; backdraft damper
