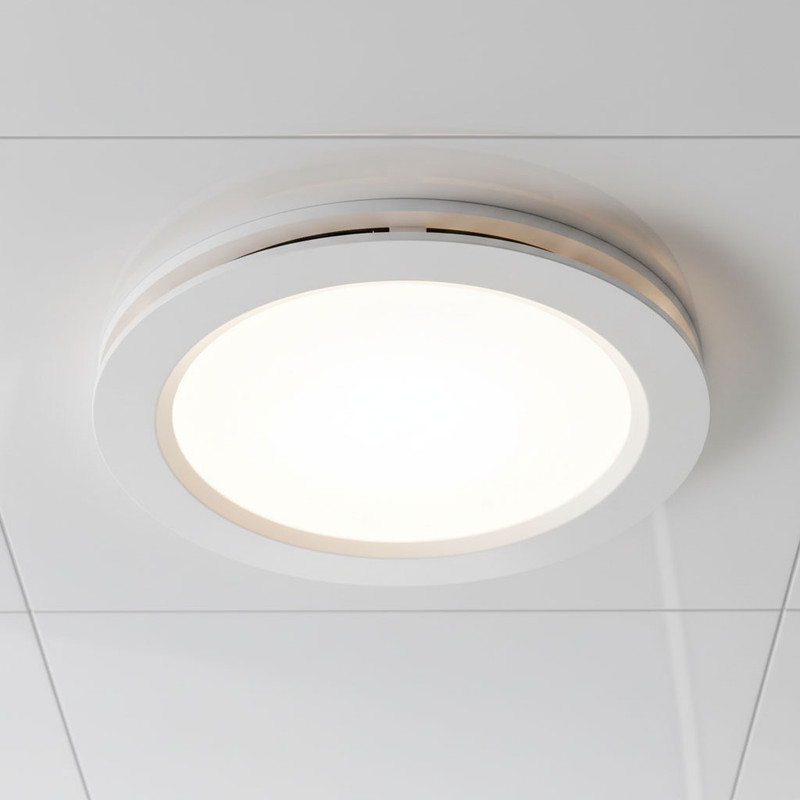

This exhaust fan is engineered to provide efficient air extraction while incorporating adaptable LED illumination for residential wet areas. Finished in white and constructed from durable plastic, the unit features a 275mm round fascia that installs neatly into ceilings using a recessed mounting system, delivering a clean and unobtrusive appearance suitable for bathrooms, toilets, and kitchens.
The ventilation system operates at a power rating of 28W and is designed to deliver airflow of up to 270m³/hr, supporting effective removal of moisture, odours, and airborne contaminants. A 100mm duct connection enables controlled air movement, while the side-ducted design and integrated draft stopper help reduce backflow and improve energy efficiency. The motor is optimised for quiet operation, allowing continuous ventilation without excessive noise disruption.
Integrated lighting is provided by a 13W LED light source with changeable colour temperature, allowing selection between 3000K warm white, 4000K cool white, and 5000K daylight white via a switch located on the rear of the fascia. The LED delivers up to 700 lumens at 4000K, providing balanced and functional illumination that can be adjusted to suit different lighting preferences and application requirements.
Measuring 275mm in diameter with a body height of 195mm and a fascia height of 28mm, the unit requires a 240mm ceiling cutout for installation and has a total weight of 2.2kg, allowing for straightforward handling during fitting. The exhaust fan is supplied with separate power cords for the fan and light, along with a side duct, draft stopper, and cut-out template to simplify installation. Backed by a 2-year replacement warranty, this exhaust fan offers a reliable combination of ventilation performance, lighting flexibility, and long-term durability for everyday residential use.
COLOUR: White
MATERIAL: Plastic
DIMENSIONS: 275mm (diameter) x 195mm (height), 28mm (fascia height)
CUTOUT: 240mm
WEIGHT: 2.2kg
WATTAGE: 28W
LED WATTAGE: 13W
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: 650lm (3000K), 700lm (4000K), 650lm (5000K)
AIRFLOW: Up to 270m³/hr
DUCT SIZE: 100mm
MOUNTING: Recessed
INCLUDES: Separate fan and light power cords; side duct and draft stopper; cut-out template
FEATURES: Changeable colour temperature (Tri-CCT)
APPLICATIONS: Bathroom, toilet and kitchen
WARRANTY: 2 years (replacement)
