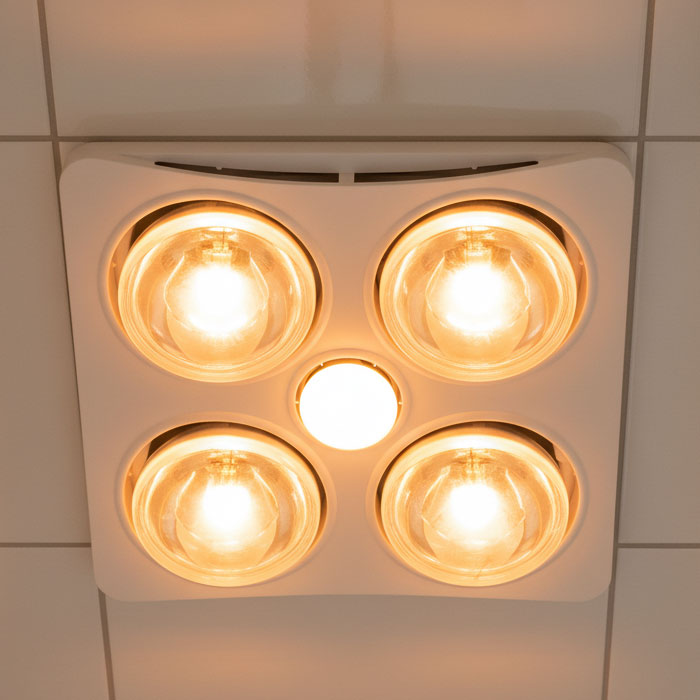

This bathroom heater fan with light is engineered to deliver effective heating, ventilation and illumination within residential bathroom environments, integrating multiple functions into a single ceiling-mounted unit. Finished in white and constructed from durable plastic, the fitting measures 364mm x 364mm x 175mm and is designed for recessed installation using a 290mm x 290mm cut-out, allowing it to sit flush within the ceiling for a clean and unobtrusive appearance.
The ventilation system is driven by a 30W ball bearing motor, delivering airflow of up to 220m³/hr to assist in the rapid removal of moisture, steam and airborne contaminants. Air is extracted through a 100mm diameter duct outlet, supporting consistent exhaust performance suitable for enclosed bathroom spaces. The unit carries an IPX2 rating, providing appropriate protection for bathroom use when installed in accordance with electrical requirements.
Heating performance is provided by four 275W infrared heat lamps, delivering strong radiant warmth to enhance occupant comfort during cooler conditions. These IR heat lamps utilise an E27 base, while the integrated lighting function operates via a single E27 globe, with a 6W globe supplied as standard. Independent control of the heat, fan and light functions allows each element to be operated as required without unnecessary energy consumption.
Designed with safety and long-term reliability in mind, the unit incorporates a 90°C thermal cut-out to protect against overheating during operation. Supplied accessories include a wall controller with three switches for separate control of heating, lighting and ventilation, along with 1.5m of flexible ducting, a duct grille, mounting hardware and a cut-out template to support accurate installation. This bathroom heater fan must be installed by a licensed electrician and is supported by a 1 year warranty, offering a dependable and integrated solution for everyday bathroom climate control.
COLOUR: White
MATERIAL: Plastic
DIMENSIONS: 364mm x 364mm x 175mm
CUTOUT: 290mm x 290mm
DUCT OUTLET: 100mm (diameter)
AIRFLOW: 220m³/hr
MOTOR: Ball bearing motor
MOTOR WATTAGE: 30W
GLOBE: E27
NUMBER OF GLOBES: 1
GLOBE INCLUDED: Yes
GLOBE WATTAGE: 6W (max per globe)
HEATER: 4 x 275W
HEAT LAMP TYPE: IR heat lamps
HEAT LAMP BASE: E27
WEIGHT: 4.3kg
IP RATING: IPX2
INSTALLATION: Must be installed by licensed electrician
INCLUDES: Wall controller with 3 switches for separate heat, light and fan control; 1.5m flexible ducting (100mm); duct grille; mounting kit; cut out template
FEATURES: 90°C thermal cut-out safety protection
WARRANTY: 1 year
