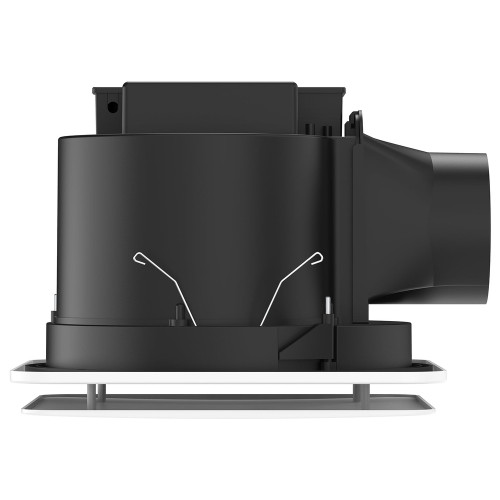

This exhaust fan is engineered with a high-performance 40W brushless direct current motor designed to deliver an exceptional airflow rate of 600 cubic meters per hour. The integration of DC technology ensures superior energy efficiency, consuming up to fifty percent less power than traditional alternating current motors while maintaining a lower operating temperature for extended component longevity. This unit is specifically optimized for bathroom applications, providing a powerful extraction solution that effectively manages moisture and air quality within residential environments.
Constructed with a sophisticated white fascia, the unit features an aerodynamic design that facilitates constant air movement with minimal pressure build-up and resistance. The system operates at a low noise level of 41 decibels, ensuring a quiet environment without compromising on extraction capability. It is fully compliant with G4 Building Code and NCC standards, featuring an IPX4 rating for protection against water splashes, which is essential for ceiling-mounted installations in humid zones.
The physical architecture of the fan includes a 330mm square profile with a depth of 215mm, requiring a standard 300mm diameter circular cutout for recessed ceiling mounting. Installation is streamlined through a specialized clamp system that allows for secure positioning and locking from below the ceiling plane. The package includes two versatile duct adaptors for 100mm and 150mm configurations, each equipped with an integrated backdraft stopper to prevent the ingress of external air and contaminants when the motor is inactive.
This robust ventilation solution is backed by a five-year warranty, reflecting its high-quality construction and reliability for long-term use. The combination of a flexible ducting interface and a high-extraction fascia design makes it a versatile choice for modern architectural requirements. By prioritizing both technical performance and aesthetic integration, this exhaust fan provides a comprehensive solution for maintaining optimal atmospheric conditions in domestic wet areas.
PRODUCT TYPE: Exhaust Fan
APPLICATIONS: Bathroom
WARRANTY: 5 years
COMPLIANCE: G4 Building Code; NCC Compliant
COLOUR: White
IP RATING: IPX4
VOLTAGE: 220V-240V AC
WATTAGE: 40W
DIMENSIONS: 330mm (width) x 330mm (depth) x 215mm (height)
CUTOUT: 300mm (diameter)
MOUNTING: Recessed (ceiling)
AIRFLOW: 600m³/hr
MOTOR: 40W DC motor
NOISE: 41dB
EXHAUST: 100mm / 150mm duct adaptors
INSTALLATION: Standard round cutout; trouble-free installation from below ceiling; clamps are easily positioned and lock into the ceiling with ease
ACCESSORIES: 2 duct adaptors (100mm and 150mm)
FEATURES: Brushless Direct Current (DC) motor; aesthetic design; powerful and efficient performance; long life (lower operating temperature); flexible ducting solution; backdraft stopper included in each adaptor; high extraction rate (fascia design allows air to move constantly and faster with minimal pressure build up and resistance)
REMARKS: Energy saving DC motor consumes up to 50% less power than most traditional AC motors
