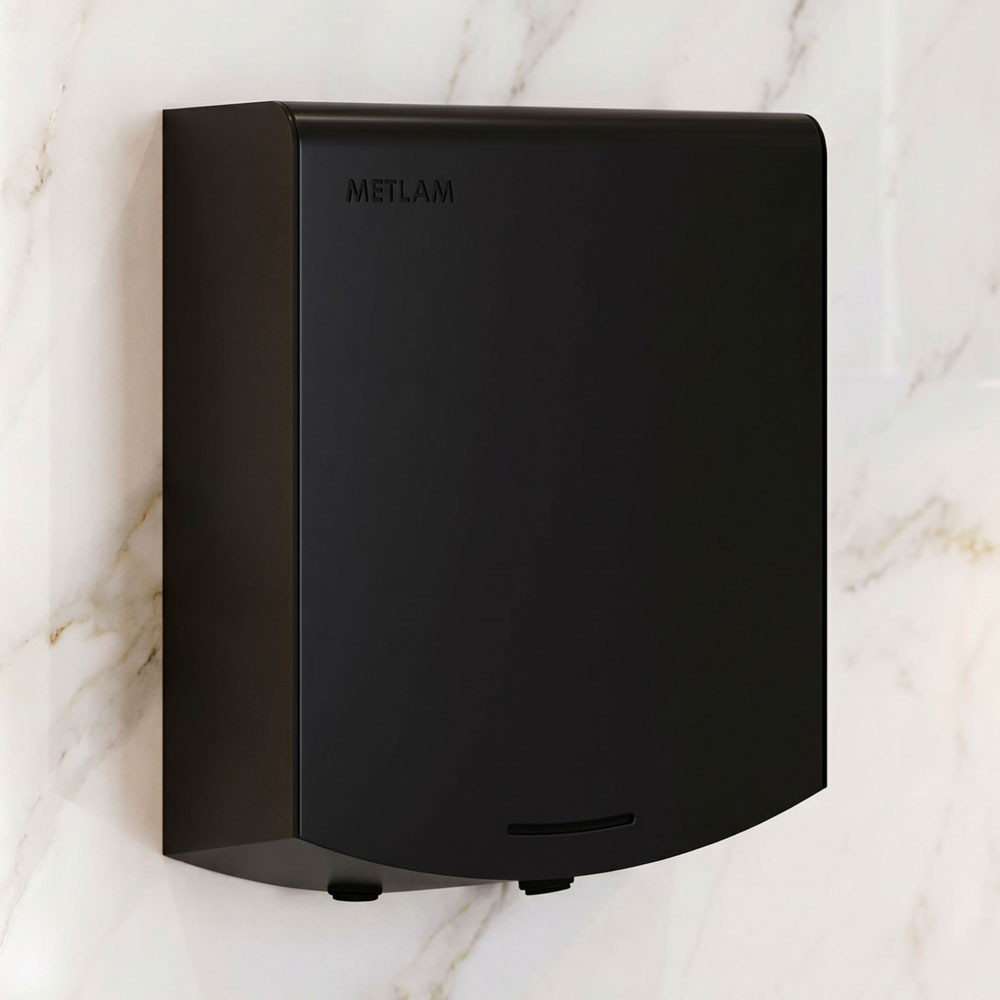

This hand dryer is a high-performance surface-mounted solution engineered for efficiency and durability in demanding environments. Constructed from 304-grade stainless steel with a black powder-coated finish, the unit features a slimline design that facilitates accessible installations in compliance with AS1428.1 guidelines. The device operates on a voltage range of 220V-240V and utilizes an infrared automatic sensor with a blue LED indicator to provide touchless operation and enhanced user hygiene.
Technical performance is driven by a brush-type motor with dual ball bearings capable of reaching speeds between 16,000 and 29,000 RPM. This configuration generates adjustable air speeds from 95m/s to 115m/s, resulting in a rapid drying time of less than 15 seconds. The integrated heater element is also adjustable between 325W and 500W, allowing for customized warm air delivery at temperatures approximately 30 degrees Celsius above ambient levels while maintaining a noise output of 72dB.
Safety and security are prioritized through a comprehensive suite of protective features including a 60-second automatic power cut-off and a 95-degree auto-reset overload mechanism for the motor. The external casing is secured with two theft-resistant stainless steel hex drive screws to prevent unauthorized tampering. With an IP24 rating and compliance across multiple international standards such as CE, UL, and RoHS, this unit ensures reliable operation and long-term structural integrity in public or commercial restrooms.
The product dimensions measure 287.9mm in height, 220mm in width, and 100mm in depth, with a total weight of 4.2kg for stable surface mounting. Installation is versatile, supporting either hardwired connections or a cord and plug setup with the included hex key. Backed by a five-year warranty, this energy-efficient dryer consumes between 2.4Wh and 4.17Wh per day, representing a sustainable and robust choice for modern facility management and high-traffic sanitary applications.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Suitable for accessible installations when installed in accordance with AS1428.1 guidelines
WARRANTY: 5 years (incorporating 3 years for replacement or repair and 2 further years for parts only)
COMPLIANCE: CB; CE; UL; EMC; LVD; WEEE; RoHS; ISO 14001:2015; AS1428.1; GreenSPEC Listed
COLOUR: Black (powder coat)
MATERIAL: 304-grade stainless steel (1.2mm thickness considered heavy gauge and premium - up to 50% thicker than typical 0.8mm alternatives)
IP RATING: IP24 (protection against water splashes from any direction, suitable for standard commercial washroom environments)
VOLTAGE: 220V-240V (50Hz)
WATTAGE: 575W-1000W (adjustable)
DIMENSIONS: 287.9mm (height) x 220mm (width) x 100mm (depth)
WEIGHT: 4.2kg
MOUNTING: Surface mounted
NOISE: 72dB (+-3)
INSTALLATION: Hardwired or cord and plug (hex key supplied) - if hardwire then 80mm from the connection point to the wall; if cord and plug then 80mm from the connection point to the bottom of the unit
MOTOR SPEED: 16,000 RPM-29,000 RPM (adjustable)
MOTOR SPECIFICATIONS: 250W-500W; brush type; dual ball bearings; 95° auto reset overload
AIR SPEED: 95m/s-115m/s (adjustable)
MOTOR CUT-OFF TIME: 60-second power cut off (auto reset)
ENERGY CONSUMPTION: 2.4Wh-4.17Wh per day
SENSOR TYPE: Infrared automatic (152mm +/- 20mm range; blue LED indicator)
DRYING TIME: Less than 15 seconds
HEATER ELEMENT: 325W-500W
WARM AIR: Speed: 95m/s-115m/s (adjustable); Temp: Ambient +30°
CASE SECURITY: 2 stainless steel theft-resistant hex drive screws
FEATURES: Slimline design; automatic operation; adjustable temperature
INCLUDES: Full instruction manual, installation manual and maintenance manual
