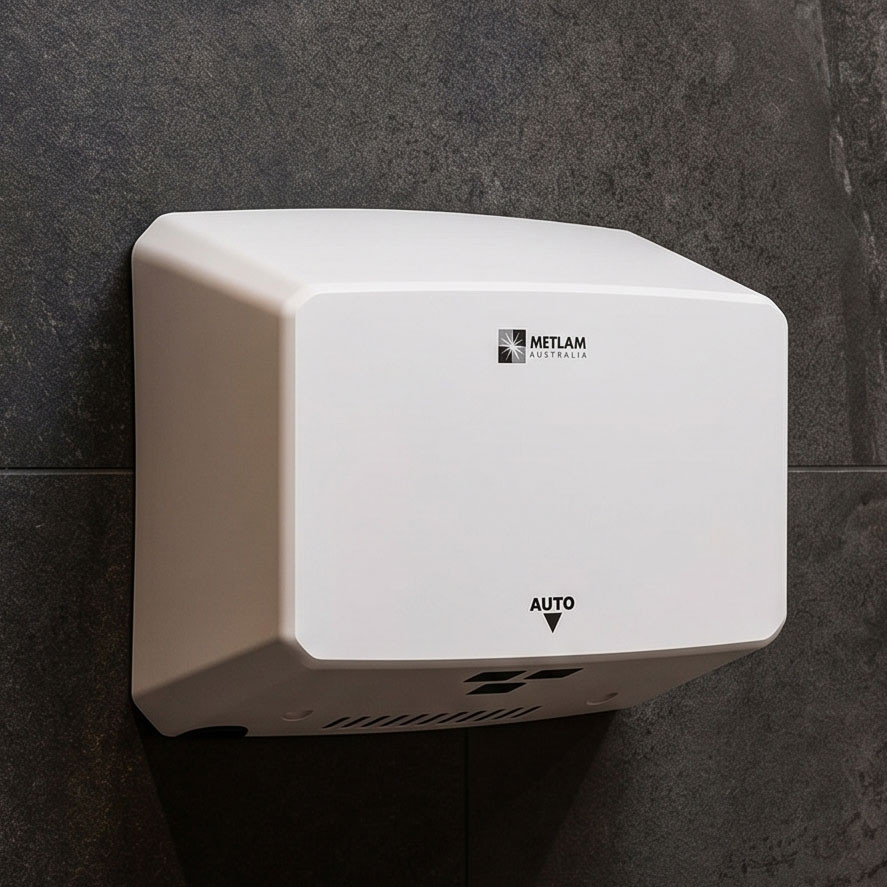

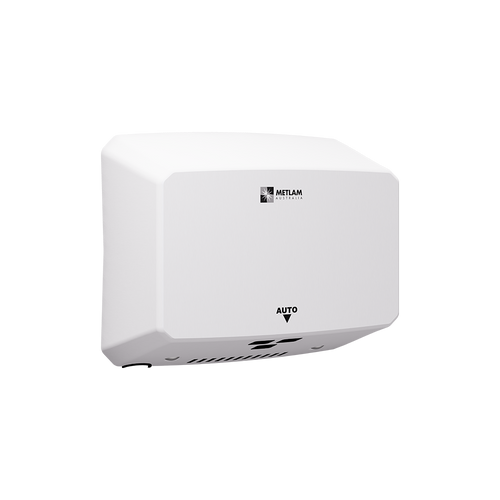

This hand dryer is a high-performance, surface-mounted solution engineered for efficiency and accessibility compliance in accordance with AS1428.1 guidelines. Constructed from 1.2mm 304 stainless steel with a durable white powder coat finish, the unit features a slimline design that integrates seamlessly into modern commercial environments. It operates on a 240V supply and utilizes an infrared automatic sensor with a self-adjusting range of 170mm to ensure touch-free, hygienic operation for all users.
Technical performance is driven by a brush-type motor with dual ball bearings, capable of reaching speeds between 16,000 and 29,000 RPM to deliver air speeds up to 82m/s. This powerful airflow facilitates a rapid drying time of less than 15 seconds while maintaining an adjustable noise profile ranging from 68.9dB to 74.3dB. The system incorporates a 60-second power cut-off safety mechanism and a 95-degree auto-reset overload protector to ensure long-term operational reliability and motor longevity.
Energy efficiency is a core characteristic of this model, with power consumption optimized between 3.5Wh and 4.17Wh per drying cycle through adjustable wattage settings from 840W to 1000W. The internal heater element is also adjustable between 325W and 500W, allowing for customized warm air delivery at temperatures approximately 25 degrees above ambient. These versatile settings enable facility managers to balance drying performance with energy conservation goals effectively across various high-traffic applications.
Installation is facilitated by a flexible design that supports either hard-wiring by a licensed electrician or the use of the provided cord and plug assembly. The unit is secured with two theft-resistant stainless steel hex drive screws to prevent unauthorized access or tampering in public spaces. Backed by a comprehensive five-year warranty and multiple international certifications including CE, UL, and RoHS, this IP24-rated appliance represents a robust and sustainable choice for professional sanitary facilities.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: This unit is accessible compliant when installed in accordance with AS1428.1 guidelines
WARRANTY: 5 years (incorporating 3 years for replacement or repair and 2 further years for parts only)
COMPLIANCE: CB; CE; UL; EMC; LVD; WEEE; RoHS; ISO 14001:2015
COLOUR: White (powder coat finish)
MATERIAL: 304-grade stainless steel (1.2mm thickness considered heavy gauge and premium - up to 50% thicker than typical 0.8mm alternatives)
IP RATING: IP24
VOLTAGE: 240V (50Hz)
WATTAGE: 840W-1000W (adjustable)
DIMENSIONS: 216mm (height) x 275.5mm (width) x 100mm (depth)
WEIGHT: 3.8kg
MOUNTING: Surface mounted
NOISE: 68.9dB-74.3dB (adjustable)
INSTALLATION: Hardwired or cord and plug (hex key supplied) - if hardwire then 80mm from the connection point to the wall; if cord and plug then 80mm from the connection point to the bottom of the unit
MOTOR SPEED: 16,000 RPM-29,000 RPM
MOTOR SPECIFICATIONS: 250W-500W brush type; dual ball bearings; 95° auto rest overload
AIR SPEED: 70m/s-82m/s
MOTOR CUT-OFF TIME: 60-sec power cut off (auto reset)
ENERGY CONSUMPTION: 3.5Wh-4.17Wh per dry
SENSOR TYPE: Infrared automatic (self adjusting; 170mm +/-20mm; blue LED indicates operation/range)
DRYING TIME: Less than 15 seconds
HEATER ELEMENT: 325W-500W (adjustable)
WARM AIR: Speed: 45.5m/s-70m/s (adjustable); Temp: Ambient +25°
CASE SECURITY: 2 SS theft-resistant hex drive screws
FEATURES: Slimline design; automatic operation; adjustable temperature
INCLUDES: Product manual, installation manual and maintenance manual
