This hand dryer is a high-performance, eco-fast solution engineered for high-traffic environments such as airports, shopping centers, and public washrooms. Constructed with a robust 1.5mm thick black steel cover and an aluminum base plate, the unit features an ultra-slim profile with a depth of only 100mm to ensure compliance with ADAAG and ADA accessibility standards. The integration of a Class F vacuum universal brush motor allows for adjustable power settings between 180W and 850W, delivering air speeds of up to 400km/h for an efficient drying time of 10 to 12 seconds.
Technical excellence is maintained through an advanced filtration system that includes both HEPA and activated carbon media, effectively capturing solid particles, pollen, and dust mites to ensure superior hygiene. The device operates via an infrared motion sensor with an adjustable detection distance between 5cm and 20cm, facilitating a touchless and sanitary user experience. Safety is prioritized with an automatic safety cut-out after 30 seconds of continuous use and a dedicated safety stop mechanism that triggers if a static object is detected in the airflow path.
Thermal management is controlled by a 500W Ni-Cr heating element equipped with a manual ON/OFF micro-switch, allowing for precise control over the 42°C output air temperature. The motor incorporates soft-start technology to enhance longevity and reduce mechanical stress, while the fan scroll is manufactured from durable Polyamide 6 for optimal aerodynamic performance. With an IP23 rating and Class I electrical insulation, the unit is designed for reliable surface-mounted installation using the provided stainless steel screws and plastic plugs for brick wall applications.
Compliance with international standards including EN 60335, CE, GS, and RoHS ensures that this hand dryer meets rigorous safety and environmental requirements. The unit operates within a noise range of 57 to 65 dBA and supports optional accessories such as an internal ionizer and odor neutralizer tablets to further enhance the washroom atmosphere. This energy-efficient appliance represents a sophisticated synthesis of high-speed performance and compact design, providing a durable and low-maintenance solution for demanding commercial facilities.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Airports; shopping centers; sports facilities; public washrooms; high traffic frequency places
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: ADAAG; ADA (Americans with Disabilities Act); EN 60335-1; EN 60335-2-23; EN 61000-3-2; EN 61000-3-3
COLOUR: Black (finish)
MATERIAL: Steel (cover); aluminum (base plate); Polyamide 6 (PA 6) (fan scroll)
IP RATING: IP23
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 180W-850W (adjustable)

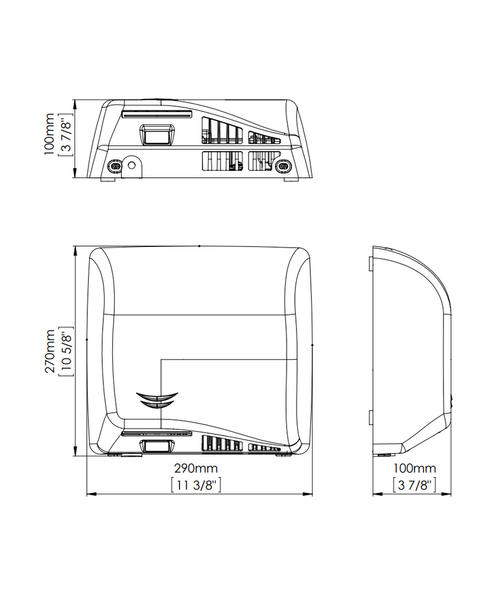

DIMENSIONS: 270mm (height) x 290mm (width) x 100mm (depth)
WEIGHT: 3.2kg
CLASS: I
RPM: 23,000-32,000
MOTOR: 350W; vacuum universal brush motor; Class F
NOISE: 57-65 dBA
MOTION SENSOR: Yes (infrared beam with detection distance adjustable by potentiometer between 5cm and 20cm)
OPERATION: Automatic start when hands are placed under air outlet; stops 2 seconds after hands are removed; automatic safety cut-out after 30 seconds of continuous use; safety stop at 3-5 seconds if a static object is detected
INSTALLATION: Stainless steel screws for brick wall with corresponding plastic plugs provided
ACCESSORIES: Ionizer ("Ion Hygienic") (optional); odour neutraliser tablet (optional)
FEATURES: High-speed; eco-fast range; energy efficient; ultra-slim design; soft start motor; Ni-Cr heating element with manual ON/OFF micro-switch
FILTER: HEPA filter medium included (filters solid particles in suspension, pollen, dust mites, fungi, tobacco smoke); activated carbon filtering medium
CONSUMPTION: 2.8A-5A (230V)
AIR TEMPERATURE: 42°C (at 10cm distance/25°C)
AIR SPEED: 290-400km/h
DRYING TIME: 10-12 seconds
HEATING ELEMENT: 500W with ON/OFF switch
COVER THICKNESS: 1.5mm
CERTIFICATIONS: CE; GS; EMC; EAC; RoHS; CB Scheme; G-Mark (GSO Certificate of Conformity)
