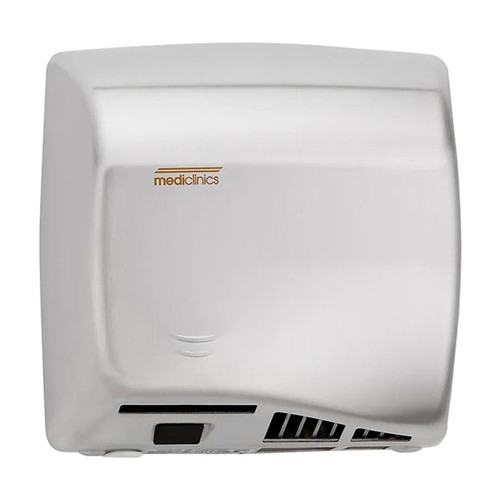

This hand dryer is a high-performance, energy-efficient solution engineered for high-traffic environments such as airports, shopping centers, and public washrooms. Constructed with a 1.5mm thick satin-finish stainless steel cover and an aluminum base plate, this ultra-slim unit complies with ADAAG and ADA standards for accessibility. The device features a vacuum universal brush motor with a soft start function, capable of reaching speeds between 23,000 and 32,000 RPM while maintaining a noise level of 57 to 65 dBA.
Technical performance is optimized through an adjustable wattage range of 180W to 850W and a 500W Ni-Cr heating element equipped with a manual ON/OFF micro-switch. The system delivers air speeds between 290 and 400 km/h, achieving a rapid drying time of 10 to 12 seconds with an air temperature of 42°C at a 10cm distance. For enhanced hygiene, the unit incorporates a HEPA filter medium to capture solid particles, pollen, and dust mites, alongside an activated carbon filtering medium to ensure clean air delivery.
Operational efficiency is managed by an infrared motion sensor with a potentiometer-adjustable detection distance between 5cm and 20cm, facilitating an automatic start and a two-second delayed stop. Safety protocols include an automatic cut-out after 30 seconds of continuous use and a specialized safety stop if a static object is detected within the sensor range. The electrical configuration supports 220V-240V at 50/60Hz with a consumption rate of 2.8A to 5A, classified as a Class I appliance with an IP23 rating for protection against solid objects and water spray.
This robust unit is certified under CE, GS, EMC, and RoHS standards, ensuring compliance with rigorous international safety and environmental regulations. Installation is streamlined with provided stainless steel screws and plastic plugs suitable for brick wall mounting, while optional accessories like the Ion Hygienic ionizer and odor neutralizer tablets offer further customization. Measuring 270mm in height and weighing 3.2kg, this Mediclinics hand dryer represents a sophisticated integration of high-speed technology and compact design for modern commercial facilities.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Airports; shopping centers; sports facilities; public washrooms; high traffic frequency places
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: ADAAG; ADA (Americans with Disabilities Act); EN 60335-1; EN 60335-2-23; EN 61000-3-2; EN 61000-3-3
COLOUR: Satin (finish)
MATERIAL: Stainless steel (cover); aluminum (base plate); Polyamide 6 (PA 6) (fan scroll)
IP RATING: IP23
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 180W-850W (adjustable)

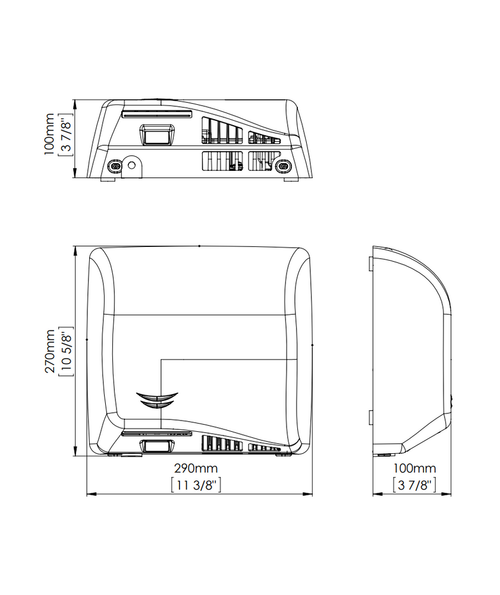

DIMENSIONS: 270mm (height) x 290mm (width) x 100mm (depth)
WEIGHT: 3.2kg
CLASS: I
RPM: 23,000-32,000
MOTOR: 350W; vacuum universal brush motor; Class F
NOISE: 57-65 dBA
MOTION SENSOR: Yes (infrared beam with detection distance adjustable by potentiometer between 5cm and 20cm)
OPERATION: Automatic start when hands are placed under air outlet; stops 2 seconds after hands are removed; automatic safety cut-out after 30 seconds of continuous use; safety stop at 3-5 seconds if a static object is detected
INSTALLATION: Stainless steel screws for brick wall with corresponding plastic plugs provided
ACCESSORIES: Ionizer ("Ion Hygienic") (optional); odour neutraliser tablet (optional)
FEATURES: High-speed; eco-fast range; energy efficient; ultra-slim design; soft start motor; Ni-Cr heating element with manual ON/OFF micro-switch
FILTER: HEPA filter medium included (filters solid particles in suspension, pollen, dust mites, fungi, tobacco smoke); activated carbon filtering medium
CONSUMPTION: 2.8A-5A (230V)
AIR TEMPERATURE: 42°C (at 10cm distance/25°C)
AIR SPEED: 290-400km/h
DRYING TIME: 10-12 seconds
HEATING ELEMENT: 500W with ON/OFF switch
COVER THICKNESS: 1.5mm
CERTIFICATIONS: CE; GS; EMC; EAC; RoHS; CB Scheme; G-Mark (GSO Certificate of Conformity)
