This hand dryer is a sophisticated solution designed for medium to low traffic environments such as restaurants, theatres, and professional offices. Constructed with a robust 1.5mm thick AISI 304 stainless steel cover in a satin finish, the unit features a fire-resistant PP-V0 plastic fan scroll and a durable Zamak outlet grill. The integration of a maintenance-free 140W induction motor operating at 2,800 RPM ensures long-term reliability and consistent performance in demanding washroom settings.
Technical performance is driven by a 1500W waved wire NiCr heating element on a mica frame, which includes a safety thermal cut-off for enhanced protection. The system delivers an airflow of 215 cubic meters per hour at an air speed of 50km/h, achieving an effective drying time of approximately 38 seconds. Operating at a noise level of 57 dBA at a two-meter distance, the device maintains a comfortable acoustic environment while providing an air temperature of 57 degrees Celsius at a 10cm distance.
Operation is fully automated via an infrared electronic detection sensor that is adjustable between 5 and 25 cm using an internal potentiometer. The Class II rated appliance initiates airflow immediately upon hand detection and continues operation until two seconds after hands are removed from the detection range. This touchless interface promotes hygiene and energy efficiency by ensuring the 1640W total power consumption is only utilized during active use cycles.
Installation is facilitated by a wall-mounted configuration using a fan scroll equipped with four 6mm diameter mounting holes. The unit is designed for 220V-240V electrical systems and carries an IP21 rating, ensuring suitability for standard washroom installations. Comprehensive certifications including CE, GS, EMC, RoHS, and the CB Scheme verify that this product meets rigorous international safety and quality standards for commercial and public applications.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Restaurants; theatres; offices; washrooms with medium/low traffic
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COLOUR: Satin (cover)
MATERIAL: Stainless steel AISI 304 (cover); fire resistant plastic PP-V0 (fan scroll and fan wheel); Zamak (outlet grill)
IP RATING: IP21
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 1640W

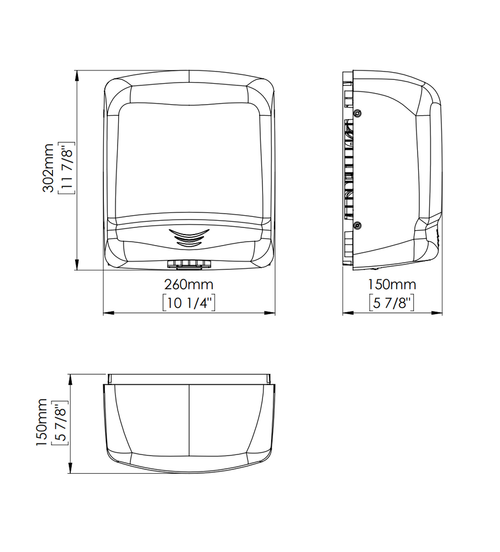

DIMENSIONS: 302mm (height) x 260mm (width) x 150mm (depth)
WEIGHT: 4.45kg
MOUNTING: Wall mounted
CLASS: II
RPM: 2,800
MOTOR: 140W (induction motor)
NOISE: 57 dBA (at 2m)
MOTION SENSOR: Yes (fully adjustable 5cm-25cm IR electronic detection sensor by means of a potentiometer)
OPERATION: Automatic start when hands are placed under the air outlet; continuous operation while hands are in detection range; stops 2 seconds after hands are removed
INSTALLATION: Fan scroll with 4 Ø 6 mm holes for wall mounting
FEATURES: Maintenance-free induction motor; safety thermal cut-off; one-piece cover
CONSUMPTION: 7A
HEATING ELEMENT: 1500W (waved wire NiCr on a mica frame with thermal cut-off)
COVER THICKNESS: 1.5mm
DRYING TIME: 38 seconds
AIRFLOW: 215 m³/h (3,590 L/min)
AIR SPEED: 50km/h
AIR TEMPERATURE: 57°C (at 10cm distance/21°C)
CERTIFICATIONS: CE; GS; EMC; RoHS; CB Scheme; G-Mark (GSO Certificate of Conformity)
