This hand dryer is a high-performance solution designed for wall-mounted installation in environments such as restaurants, theatres, and offices with medium to low traffic. It features a robust 1.5mm thick white steel cover and a maintenance-free 140W induction motor that operates at 2,800 RPM to ensure long-term reliability. The unit is equipped with a fully adjustable infrared electronic detection sensor, allowing for a customizable detection range between 5 and 25 cm for precise automatic operation.
Technical performance is driven by a 1500W waved wire NiCr heating element on a mica frame, which includes a safety thermal cut-off to prevent overheating. The system delivers an airflow of 215 cubic meters per hour at an air speed of 50km/h, achieving an air temperature of 57 degrees Celsius at a 10cm distance. With a total power consumption of 1640W and a current draw of 7A, the device provides an efficient drying time of approximately 38 seconds while maintaining a relatively quiet noise level of 57 dBA at two meters.
The construction incorporates high-quality materials including fire-resistant PP-V0 plastic for the fan scroll and wheel, alongside a durable Zamak outlet grill. The unit is classified as Class II for electrical safety and carries an IP21 rating, making it suitable for protected indoor washroom environments. Its compact dimensions of 302mm in height, 260mm in width, and 150mm in depth allow for a streamlined surface-mounted profile that integrates seamlessly into modern commercial interiors.
Certified by CE, GS, EMC, RoHS, and the CB Scheme, this hand dryer meets rigorous international standards for safety and quality. The automatic start-stop mechanism ensures energy efficiency by terminating operation two seconds after hands are removed from the detection zone. Backed by a multi-year warranty, this unit represents a dependable and hygienic hand-drying solution for professional facilities seeking a balance of performance and durability.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Restaurants; theatres; offices; washrooms with medium/low traffic
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COLOUR: White (cover)
MATERIAL: Steel (cover); fire resistant plastic PP-V0 (fan scroll and fan wheel); Zamak (outlet grill)
IP RATING: IP21
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 1640W

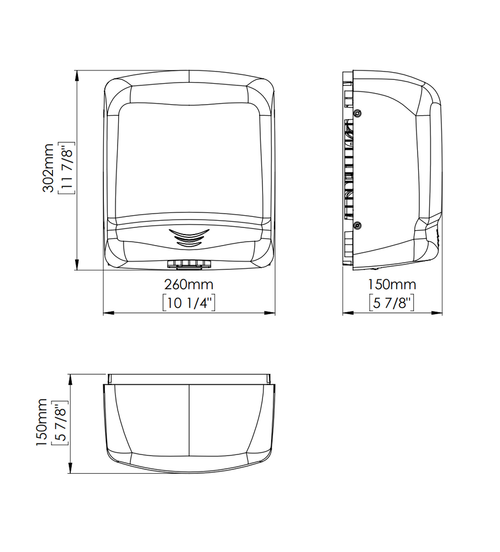

DIMENSIONS: 302mm (height) x 260mm (width) x 150mm (depth)
WEIGHT: 4.45kg
MOUNTING: Wall mounted
CLASS: II
RPM: 2,800
MOTOR: 140W (induction motor)
NOISE: 57 dBA (at 2m)
MOTION SENSOR: Yes (fully adjustable 5cm-25cm IR electronic detection sensor by means of a potentiometer)
OPERATION: Automatic start when hands are placed under the air outlet; continuous operation while hands are in detection range; stops 2 seconds after hands are removed
INSTALLATION: Fan scroll with 4 Ø 6 mm holes for wall mounting
FEATURES: Maintenance-free induction motor; safety thermal cut-off; one-piece cover
CONSUMPTION: 7A
HEATING ELEMENT: 1500W (waved wire NiCr on a mica frame with thermal cut-off)
COVER THICKNESS: 1.5mm
DRYING TIME: 38 seconds
AIRFLOW: 215 m³/h (3,590 L/min)
AIR SPEED: 50km/h
AIR TEMPERATURE: 57°C (at 10cm distance/21°C)
CERTIFICATIONS: CE; GS; EMC; RoHS; CB Scheme; G-Mark (GSO Certificate of Conformity)
