This hand dryer is a compact and efficient solution designed for medium traffic environments such as cafeterias, small offices, and restaurants. Engineered with a high-impact 3mm ABS thermoplastic cover and a fire-resistant PP-V0 fan wheel, the unit ensures durability and safety in public spaces. The surface-mounted design features an anti-vandal system with a cover secured by two screws, providing a robust installation for various commercial applications.
Performance is driven by a 150W universal brush motor operating at 15,000 RPM, coupled with a 950W waved wire NiCr heating element to deliver a total power output of 1,100W. This configuration generates an effective airflow of 102 m³/h and an air speed of 100km/h, achieving a drying time of approximately 39 seconds. The integrated mica heating element frame maintains an air temperature of 55°C at a 10cm distance, ensuring a comfortable and effective user experience.
Operation is fully automated via an adjustable infrared electronic detection sensor, which allows for a detection range between 5cm and 25cm using a potentiometer. The system initiates immediately upon hand placement and includes a safety feature that stops operation two seconds after hands are removed from the detection zone. This touchless functionality enhances hygiene standards while the safety thermal cut-off protects both the motor and the heating element from overheating.
Technical compliance is verified through multiple certifications including CE, GS, EMC, RoHS, and the CB Scheme, adhering to IEC 60335-1 and IEC 60335-2-23 standards. The unit is rated Class II for electrical insulation and carries an IP23 ingress protection rating, making it suitable for specific indoor environments. With a low noise level of 67 dBA and a weight of only 1.2kg, this hand dryer combines high-performance air delivery with a discreet and lightweight profile.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: Medium traffic areas; medium sized restaurants; cafeterias; offices of a small or medium sized company; cafés
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: IEC 60335-1; IEC 60335-2-23; IEC 62233
COLOUR: White
MATERIAL: ABS thermoplastic (cover); thermoplastic PP + talcum (base plate); fire resistant plastic PP-V0 (fan wheel); mica (heating element frame)
IP RATING: IP23
VOLTAGE: 220V-240V (50/60Hz)
WATTAGE: 1,100W

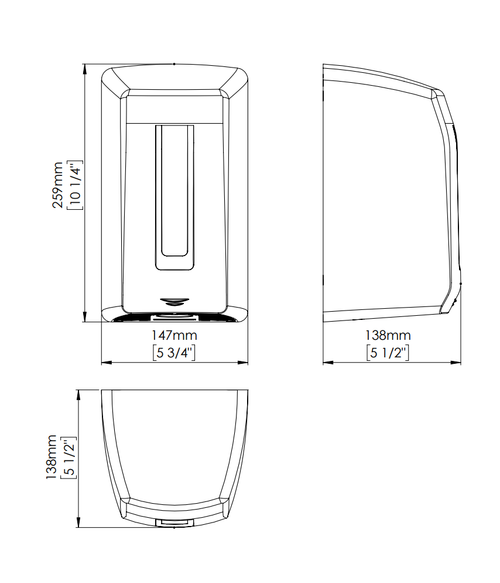

DIMENSIONS: 259mm (height) x 147mm (width) x 138mm (depth)
WEIGHT: 1.2kg
MOUNTING: Surface mounted (wall mounting via base plate with 4 holes)
CLASS: II
RPM: 15,000
MOTOR: 150W (universal brush motor)
NOISE: 67 dBA
MOTION SENSOR: Yes (fully adjustable 5cm-25cm IR electronic detection sensor by means of a potentiometer)
OPERATION: Automatic start when hands are placed under the air outlet; continuous operation while hands remain in detection range; stops 2 seconds after hands are removed
FEATURES: Compact design; low consumption; safety thermal cut-off (motor and heating element); anti-vandal (cover fixed by 2 screws)
CONSUMPTION: 4.8A
HEATING ELEMENT: 950W (waved wire NiCr)
COVER THICKNESS: 3mm
DRYING TIME: 39 seconds
EFFECTIVE AIRFLOW: 102 m³/h (1,700 L/min)
AIR SPEED: 100km/h
AIR TEMPERATURE: 55°C (at 10cm distance/21°C)
CERTIFICATIONS: CE; GS; EMC; RoHS; CB Scheme
