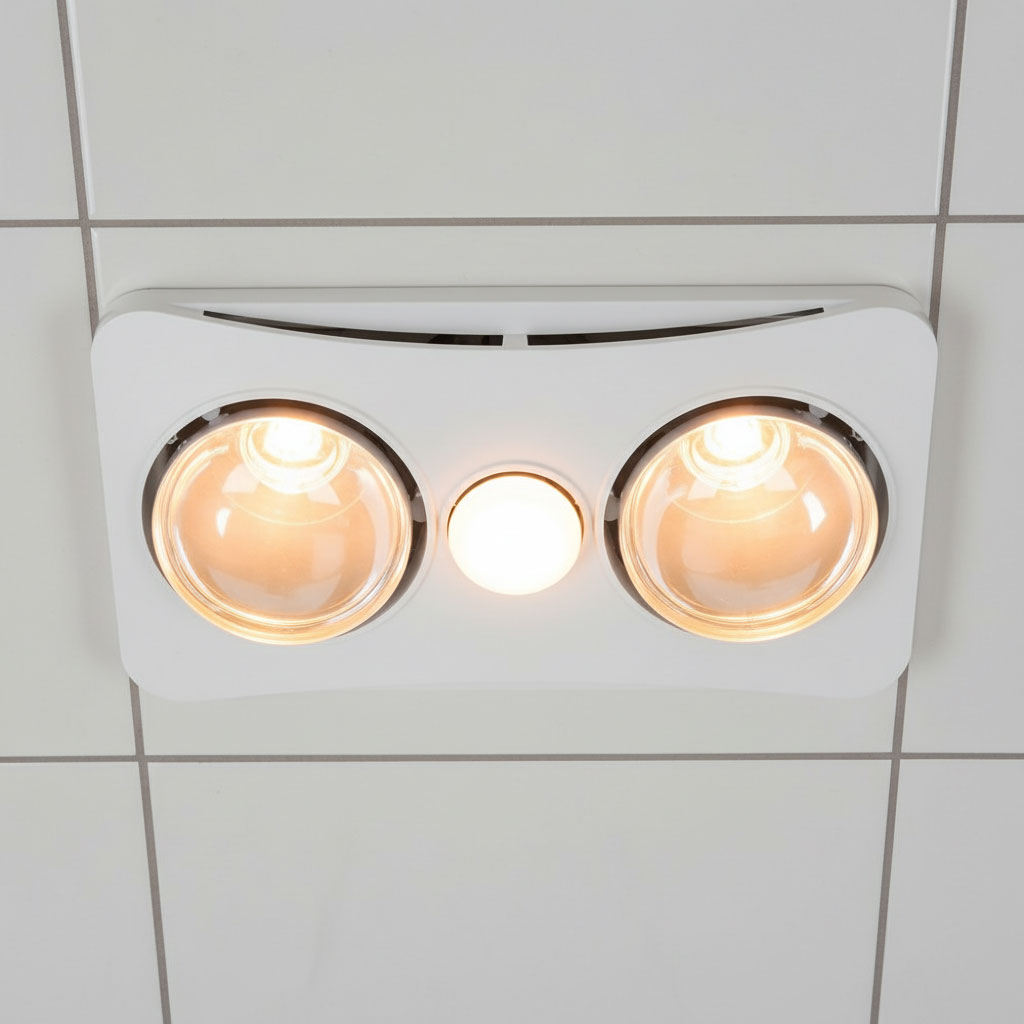

This bathroom heater fan with light is engineered to provide efficient climate control and illumination for residential bathroom environments, combining heating, ventilation and lighting into a single ceiling-mounted unit. Finished in white and constructed from durable plastic, the fitting measures 400mm x 226mm x 170mm and is designed for recessed installation with a 345mm x 190mm cut-out, allowing it to integrate neatly into standard ceiling cavities while maintaining a clean, unobtrusive appearance.
The ventilation system is driven by a ball bearing motor rated at 30W, delivering an airflow of up to 220m³/hr to effectively remove excess moisture, steam and airborne contaminants. Air is discharged through a 100mm diameter duct outlet, supporting consistent extraction performance suitable for enclosed bathroom spaces. The unit is rated IPX2, providing appropriate protection for bathroom use when installed in accordance with local electrical regulations.
Heating performance is provided by two 275W infrared heat lamps, delivering rapid radiant warmth to improve occupant comfort during colder conditions. These IR heat lamps utilise an E27 base, while the integrated light function also uses a single E27 globe, with a 6W globe included as standard. Independent control of heat, fan and light functions allows users to operate each component as required without unnecessary energy consumption.
Designed with safety and reliability in mind, the unit incorporates a 90°C thermal cut-out to protect against overheating during operation. Supplied accessories include a wall controller with three switches for separate control of heating, lighting and ventilation, along with 1.5m of flexible ducting, a duct grille, mounting hardware and a cut-out template to support accurate installation. This bathroom heater fan must be installed by a licensed electrician and is backed by a 1 year warranty, offering a dependable and well-integrated solution for everyday bathroom comfort.
COLOUR: White
MATERIAL: Plastic
DIMENSIONS: 400mm x 226mm x 170mm
CUTOUT: 345mm x 190mm
DUCT OUTLET: 100mm (diameter)
AIRFLOW: 220m³/hr
MOTOR: Ball bearing motor
MOTOR WATTAGE: 30W
GLOBE: E27
NUMBER OF GLOBES: 1
GLOBE INCLUDED: Yes
GLOBE WATTAGE: 6W (max per globe)
HEATER: 2 x 275W
HEAT LAMP TYPE: IR heat lamps
HEAT LAMP BASE: E27
WEIGHT: 2.5kg
IP RATING: IPX2
INSTALLATION: Must be installed by licensed electrician
INCLUDES: Wall controller with 3 switches for separate heat, light and fan control; 1.5m flexible ducting (100mm); duct grille; mounting kit; cut out template
FEATURES: 90°C thermal cut-out safety protection
WARRANTY: 1 year
