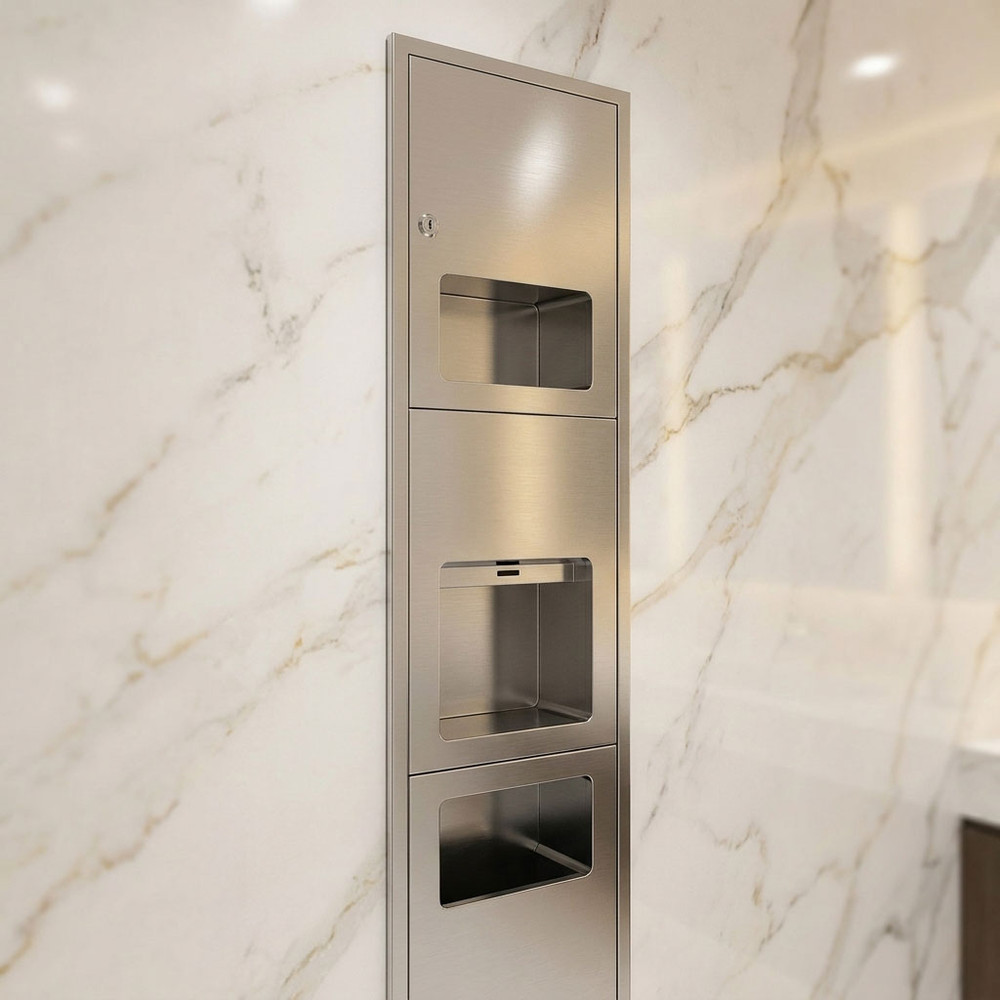

This hand dryer is a sophisticated 3-in-1 recessed unit engineered from high-grade stainless steel with a satin finish, integrating an automatic eco dryer, a slim paper towel dispenser, and a 20L removable waste container. Designed for seamless architectural integration, the unit features a full-length piano hinge, seamless welds, and rolled edges to ensure structural integrity and a refined aesthetic in high-traffic environments.
The integrated automatic hand dryer operates at 1000W with a voltage range of 230V-240V, utilizing a high-velocity airflow of 90m/s to achieve a drying time of less than 15 seconds. It incorporates an 85°C auto-reset safety cut-off heater and produces a noise level of 72dB at one meter, providing a balance of rapid performance and operational safety within a hard-wired electrical configuration.
Constructed for durability and security, the housing is fitted with a security lock and supplied with two keys to protect internal components and consumables. The recessed mounting requires a wall opening of 1600mm in height and 290mm in width, while the external dimensions of 1625mm by 318mm provide comprehensive coverage and a streamlined profile that minimizes spatial protrusion.
This professional hygiene solution is backed by a comprehensive warranty structure, including a five-year term for the hand dryer component and a one-year term for the paper towel and waste receptacle elements. The unit is designed to accommodate standard commercial slim paper towels, ensuring a versatile and reliable multi-functional system for modern commercial washroom facilities.
PRODUCT TYPE: 3-in-1 Hand Dryer + Towel Dispenser + Waste Receptacle
WARRANTY: 5 years hand dryer (3 years for replacement or repair plus 2 further years for parts only); 1 year for paper towel dispenser and waste receptacle
COLOUR: Satin stainless steel
MATERIAL: 304 grade stainless steel
IP RATING: IPX1 (indoors)
VOLTAGE: 230V-240V (50/60Hz)
WATTAGE: 1000W
DIMENSIONS: 1625mm (height) x 318mm (width) x 141.5mm (depth)
MOUNTING: Recessed
NOISE: 72db (+-3)@1M db
OPERATION: Automatic operation
WALL OPENING: 1600mm (height) x 290mm (width) x 145mm (depth)
DISPOSAL: 20L removable stainless steel waste container
HAND DRYER: Eco auto dryer
POWER USE: 4.17A
POWER SUPPLY: Hard wired - 4 electrical cable entry points available
DRYING TIME: Less than 15 seconds
HEATER: 85°C auto reset safety cut off
WARM AIR: Speed: 90m/s; Temp: Ambient +30°C
PAPER TOWELS: Requires standard size commercial slim paper towels (sold separately)
CASE SECURITY: Unit fitted with security lock; unit is supplied with 2 keys
FEATURES: Full length piano hinge on doors; seamless welds; rolled edges
INCLUDES: Full instruction manual, installation manual and maintenance manual
