This hand dryer is a high-performance solution engineered for high traffic environments, featuring a robust 1.5mm thick steel cover and a fire-resistant PA6V0 plastic base plate. The unit operates on a 220V-240V AC supply and utilizes a Class F vacuum universal brush motor capable of reaching speeds between 19,000 and 30,000 RPM. Its compact and maintenance-free design ensures long-term reliability while maintaining a professional aesthetic in commercial or public facilities.
Technical efficiency is prioritized through an adjustable wattage range of 420W to 1500W and a 400W heating element equipped with an independent ON/OFF switch. The device delivers impressive airflow rates between 115 and 180 cubic meters per hour, achieving air speeds of up to 325 kilometers per hour to facilitate rapid drying times of 10 to 15 seconds. This energy-efficient operation is complemented by an adjustable motor power setting, allowing for precise control over performance and noise levels ranging from 67 to 74 dBA.
Advanced automation is provided by a fully adjustable infrared electronic detection sensor that activates the unit within a range of 5cm to 25cm. For enhanced safety and energy conservation, the system includes an automatic safety disconnection mechanism that triggers after 60 seconds of continuous use and stops operation 2 seconds after hands are removed. The inclusion of an IP23 rating and Class I electrical protection ensures the device meets rigorous safety standards for installation in diverse environments.
Installation is streamlined with the inclusion of all necessary hardware for brick wall mounting, supporting a secure and stable fit for the 5.1kg unit. The product is compliant with multiple international standards including EN 60335-1 and EN 61000-3-2, and carries certifications such as CE, GS, and RoHS. Optional accessories including HEPA filter media, ionizer technology, and odour neutralisers are available to further enhance the hygienic performance and air quality of the facility.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: High traffic places
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: EN 60335-1; EN 60335-2-23; EN 61000-3-2; EN 61000-3-3
COLOUR: Black (finish)
MATERIAL: Steel (cover); PA6V0 fire resistant plastic (base plate and interior set)
IP RATING: IP23
VOLTAGE: 220V-240V AC (50/60Hz)
WATTAGE: 420W-1500W (adjustable)

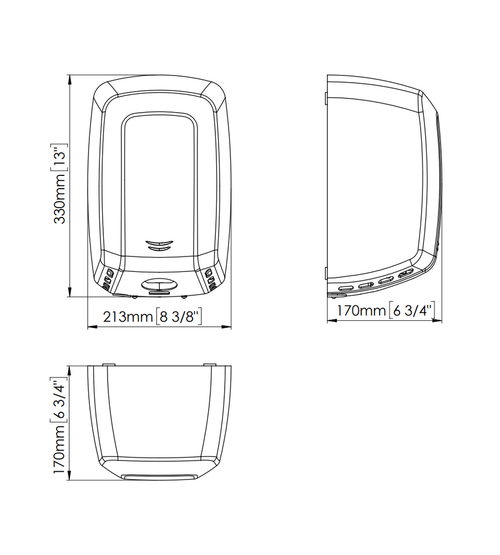

DIMENSIONS: 330mm (height) x 213mm (width) x 170mm (depth)
WEIGHT: 5.1kg
CLASS: I
OPERATION: Sensor operated; automatic infrared sensor activation; adjustable motor power; automatic safety disconnection system (switches off after 60 seconds of continuous use); stops 2 seconds after hands are removed; detection distance adjustable between 5cm and 25cm
RPM: 19,000-30,000
MOTOR: 420W-1100W; vacuum universal brush motor; Class F
NOISE: 67-74 dBA
MOTION SENSOR: Yes (fully adjustable IR electronic detection sensor)
INSTALLATION: Supplied as standard with all elements to fix it to a brick wall
ACCESSORIES: HEPA filter media (optional); Ionizer ("Ion Hygienic" technology) (optional); Plug-in kit (optional); Odour neutraliser (optional)
FEATURES: High-speed; maintenance free; compact and robust design; energy efficient; air concentrator nozzle
CONSUMPTION: 3.2A-6.4A
AIR TEMPERATURE: 45°C (at 10cm distance/21°C)
AIR SPEED: 191-325km/h
AIRFLOW: 115-180m³/h (1,917-3,000L/min)
DRYING TIME: 10-15 seconds
HEATING ELEMENT: 400W with ON/OFF switch
COVER THICKNESS: 1.5mm
CERTIFICATIONS: CE; GS; EMC; EAC; RoHS; CB Scheme; UL
