This hand dryer is a high-performance solution engineered for high-traffic environments, featuring a robust 1.5mm thick steel cover and a fire-resistant PA6V0 plastic base plate. The unit operates on a 220V-240V AC supply and utilizes a Class F vacuum universal brush motor capable of reaching speeds between 19,000 and 30,000 RPM. Its compact and maintenance-free design ensures long-term reliability while providing an adjustable power range from 420W to 1500W to optimize energy efficiency.
Technical performance is characterized by an impressive air speed of 191 to 325 km/h and an airflow rate of up to 180 m³/h, facilitating a rapid drying time of 10 to 15 seconds. The integration of an air concentrator nozzle and a 400W heating element with an independent ON/OFF switch allows for precise control over the 45 degree Celsius output temperature. Furthermore, the device includes a fully adjustable infrared electronic detection sensor for touchless operation, enhancing hygiene and user convenience in commercial settings.
Environmental air quality is prioritized through the inclusion of HEPA filter media, which effectively captures pollen, dust mites, and tobacco smoke during the drying process. The unit also offers optional integration for Ion Hygienic technology, a plug-in kit, and an odour neutraliser to further enhance the sanitary conditions of the restroom facility. With an IP23 rating and noise levels ranging from 67 to 74 dBA, this appliance balances powerful pneumatic performance with operational safety and acoustic comfort.
Compliance with international standards is verified by certifications including CE, GS, EMC, EAC, RoHS, and the CB Scheme, ensuring the product meets rigorous safety and quality benchmarks. The system is supplied with all necessary components for secure installation on brick masonry and is backed by a one-year warranty. Weighing 5.1kg and measuring 330mm in height, this hand dryer represents a sophisticated synthesis of durable materials and advanced airflow engineering for demanding public applications.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: High traffic places
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: EN 60335-1; EN 60335-2-23; EN 61000-3-2; EN 61000-3-3
COLOUR: White (finish)
MATERIAL: Steel (cover); PA6V0 fire resistant plastic (base plate and interior set)
IP RATING: IP23
VOLTAGE: 220V-240V AC (50/60Hz)
WATTAGE: 420W-1500W (adjustable)

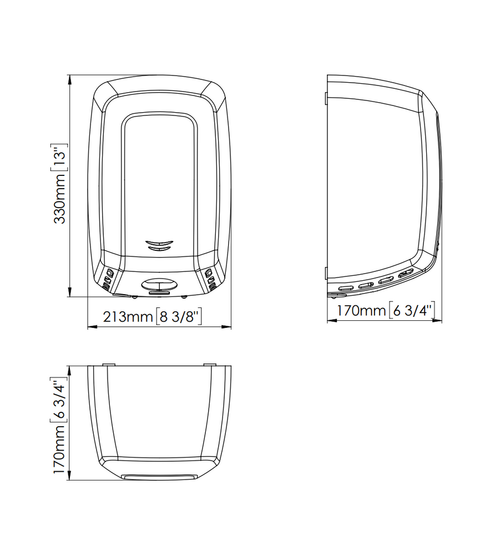

DIMENSIONS: 330mm (height) x 213mm (width) x 170mm (depth)
WEIGHT: 5.1kg
CLASS: I
OPERATION: Sensor operated; automatic infrared sensor activation; adjustable motor power; automatic safety disconnection system (switches off after 60 seconds of continuous use); stops 2 seconds after hands are removed; detection distance adjustable between 5cm and 25cm
RPM: 19,000-30,000
MOTOR: 420W-1100W; vacuum universal brush motor; Class F
NOISE: 67-74 dBA
MOTION SENSOR: Yes (fully adjustable IR electronic detection sensor)
INSTALLATION: Supplied as standard with all elements to fix it to a brick wall
ACCESSORIES: Ionizer ("Ion Hygienic" technology) (optional); Plug-in kit (optional); Odour neutraliser (optional)
FEATURES: High-speed; maintenance free; compact and robust design; energy efficient; air concentrator nozzle
FILTER: HEPA filter media included (filters pollen, dust mites, tobacco smoke)
CONSUMPTION: 3.2A-6.4A
AIR TEMPERATURE: 45°C (at 10cm distance/21°C)
AIR SPEED: 191-325km/h
AIRFLOW: 115-180m³/h (1,917-3,000L/min)
DRYING TIME: 10-15 seconds
HEATING ELEMENT: 400W with ON/OFF switch
COVER THICKNESS: 1.5mm
CERTIFICATIONS: CE; GS; EMC; EAC; RoHS; CB Scheme; UL
