This hand dryer is engineered for high-traffic environments, featuring a robust 1.5mm thick satin-finish stainless steel cover and a fire-resistant PA6V0 plastic base. The unit operates on a 220V-240V AC supply and utilizes a Class F vacuum universal brush motor capable of reaching 19,000 to 30,000 RPM. Its compact and maintenance-free design ensures long-term reliability while maintaining a professional aesthetic suitable for various commercial applications.
Technical performance is characterized by an adjustable wattage range of 420W to 1500W, allowing for optimized energy consumption between 3.2A and 6.4A. The integrated 400W heating element includes an independent ON/OFF switch to manage thermal output, delivering air at approximately 45 degrees Celsius. With air speeds ranging from 191 to 325 km/h and an airflow capacity of up to 180 cubic meters per hour, the system achieves an efficient drying time of 10 to 15 seconds.
Operational control is facilitated by a fully adjustable infrared electronic detection sensor with a programmable distance between 5cm and 25cm. The device incorporates an automatic safety disconnection system that terminates operation after 60 seconds of continuous use or 2 seconds after hand removal. Noise levels are maintained between 67 and 74 dBA, ensuring a balance between high-speed performance and acoustic comfort within the installation environment.
Compliance with international standards is verified through certifications including CE, GS, EMC, EAC, RoHS, and the CB Scheme. The unit is classified as Class I with an IP23 rating, providing essential protection for indoor wall-mounted installations. Optional enhancements such as HEPA filter media, ionizer technology, and odor neutralizers are available to further improve air quality and hygiene during the drying process.
PRODUCT TYPE: Hand Dryer
APPLICATIONS: High traffic places
MADE IN: Europe
WARRANTY: 5 years (2 years labour, 5 years parts)
COMPLIANCE: EN 60335-1; EN 60335-2-23; EN 61000-3-2; EN 61000-3-3
COLOUR: Satin (finish)
MATERIAL: Stainless steel (cover); PA6V0 fire resistant plastic (base plate and interior set)
IP RATING: IP23
VOLTAGE: 220V-240V AC (50/60Hz)
WATTAGE: 420W-1500W (adjustable)

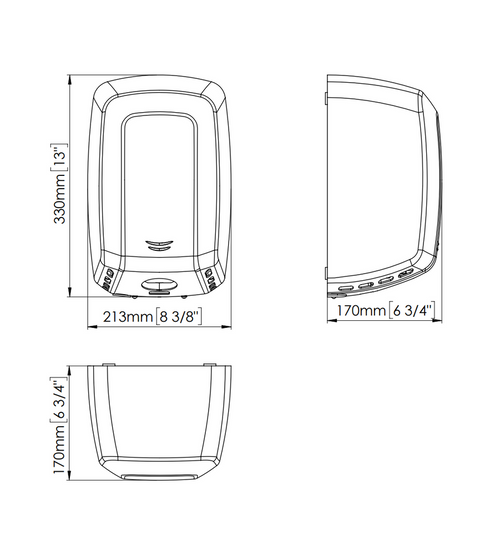

DIMENSIONS: 330mm (height) x 213mm (width) x 170mm (depth)
WEIGHT: 5.1kg
CLASS: I
OPERATION: Sensor operated; automatic infrared sensor activation; adjustable motor power; automatic safety disconnection system (switches off after 60 seconds of continuous use); stops 2 seconds after hands are removed; detection distance adjustable between 5cm and 25cm
RPM: 19,000-30,000
MOTOR: 420W-1100W; vacuum universal brush motor; Class F
NOISE: 67-74 dBA
MOTION SENSOR: Yes (fully adjustable IR electronic detection sensor)
INSTALLATION: Supplied as standard with all elements to fix it to a brick wall
ACCESSORIES: HEPA filter media (optional); Ionizer ("Ion Hygienic" technology) (optional); Plug-in kit (optional); Odour neutraliser (optional)
FEATURES: High-speed; maintenance free; compact and robust design; energy efficient; air concentrator nozzle
CONSUMPTION: 3.2A-6.4A
AIR TEMPERATURE: 45°C (at 10cm distance/21°C)
AIR SPEED: 191-325km/h
AIRFLOW: 115-180m³/h (1,917-3,000L/min)
DRYING TIME: 10-15 seconds
HEATING ELEMENT: 400W with ON/OFF switch
COVER THICKNESS: 1.5mm
CERTIFICATIONS: CE; GS; EMC; EAC; RoHS; CB Scheme; UL
